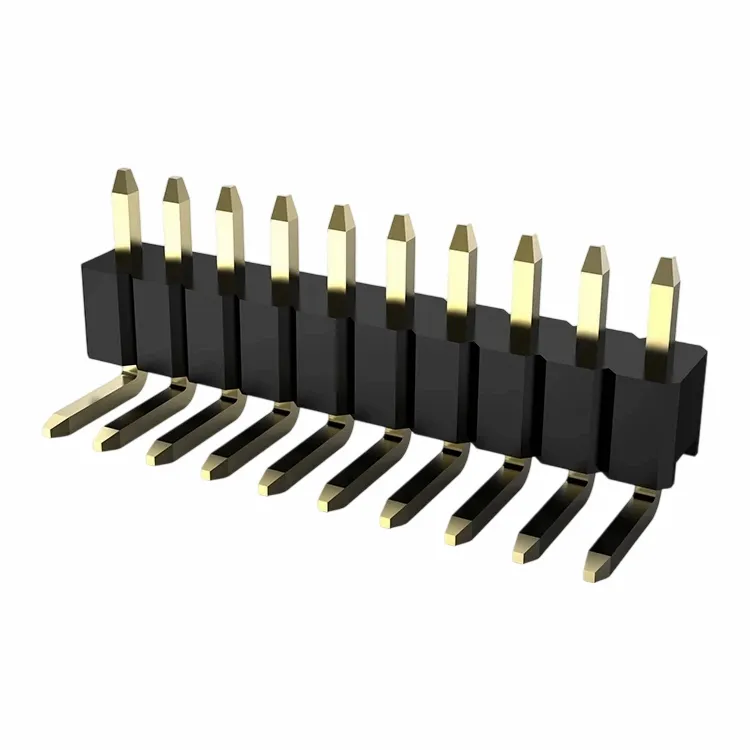

2.54mm Pin Header Single Row Right Angle DIP

   The 2.54mm single-row right-angle DIP pin header features A-current carrying capacity, low contact resistance, space-saving right-angle design, wide temperature range, UL94 V0/RoHS compliance, easy DIP wave soldering, multiple plating options, batch consistency, and cost-effectiveness. It is a versatile and reliable alternative to the Molex KK 254 / industry standard 2.54mm right-angle series, suitable for medium to large OEM customers seeking space optimization, wave soldering convenience, and supply chain flexibility.

1. Space-Optimizing Right-Angle DIP Design
The 2.54mm single-row right-angle DIP pin header features a horizontal cable exit with copper alloy contacts and high-temperature plastic housing. this configuration enables denser PCB layouts and supports efficient wave soldering. It helps reduce board footprint, lower material costs, simplify manufacturing processes, accelerate production cycles, and improve overall design efficiency in industrial control and automotive applications.
2. Industry Standards Compliance
Manufactured to UL94 V0 flammability rating and fully RoHS & REACH compliant, this right-angle pin header meets essential regulatory requirements. Comprehensive teams benefit from streamlined supplier qualification, reduced compliance risks, faster certification processes, and minimized potential regulatory delays or rework expenses during product development and market entry.
3. Reliable Electrical Performance
With 3A current capacity, 20mΩ maximum contact resistance, and strong insulation performance across -40°C to +105°C, the connector ensures consistent signal and power transmission. This reliability helps teams decrease field failure risks, reduce troubleshooting time, enhance prototype validation, and strengthen long-term system stability.
4. Consistent Quality from Automated Manufacturing
Advanced mechanized production processes deliver excellent batch-to-batch uniformity and traceability for every header. Procurement and engineering teams gain from predictable component quality, simplified incoming inspection, fewer defects, and reduced total procurement costs while supporting smooth transitions from prototype to volume production.
5. Optimized Assembly and Design Flexibility
The right-angle DIP structure supports straightforward wave soldering and flexible integration into various board architectures. This enables cross-functional teams to optimize PCB layouts, accelerate development timelines, lower assembly complexity, and improve supply chain efficiency in power systems, communication devices, and IoT projects.

1: Industrial Control and Automotive Modules
Cross-functional teams at industrial control and automotive electronics manufacturers need compact connectors that support space-efficient PCB layouts and reliable power distribution under varying environmental conditions. Our 2.54mm single-row right-angle DIP pin header, featuring copper alloy contacts, high-temperature plastic housing, 3A current capacity, and UL94 V0 & RoHS compliance, provides optimized horizontal routing and dependable wave soldering compatibility. Teams select this component for its consistent batch quality from mechanized production, design flexibility, and regulatory alignment. This results in reduced board footprint, lower material and assembly costs, faster production ramp-up, minimized field failure risks, and enhanced overall project stability for demanding industrial and automotive applications.
2: Power Systems and Communication Equipment
Procurement, engineering, and production teams developing power systems and communication modules require connectors that balance standard performance with compact right-angle designs. This 2.54mm single-row right-angle DIP pin header delivers stable signal and power transmission with low contact resistance and wide temperature tolerance from -40°C to +105°C. Its right-angle configuration facilitates clean horizontal wiring and efficient layouts. Cross-functional teams value the predictable quality and compliance standards, which streamline qualification and reduce design revisions. The outcome is shorter development cycles, lower total ownership costs, reduced compliance risks, and greater confidence in scaling to production for reliable power and communication products.
3: IoT Devices and Office Equipment Applications
Integrated teams at IoT device and office equipment manufacturers seek interconnect solutions that optimize board density and manufacturing efficiency without compromising reliability. Our 2.54mm right-angle DIP pin header offers dependable electrical performance and mechanical stability in a space-saving package, supporting efficient wave soldering processes. Teams benefit from mechanized production consistency, flexible supply options, and simplified assembly. By adopting this component, organizations achieve reduced assembly defects, lower material and warranty costs, simplified sourcing, and improved supply chain predictability - ultimately driving better project profitability and higher end-product reliability in competitive consumer and industrial markets.

   XHS actively provides technical support, sample testing, factory audits, traceability, and rapid response.

• Standard tin-plated models for consumer electronics/LEDs/home appliances have a 12-month warranty, calculated from the date of customer receipt; gold-plated thickened models and industrial control improved models have an extended warranty of 18 months; customized automotive IATF16949 models have a 24-month warranty.
• 24/7 technical after-sales support; customer complaints about failures will be responded to within 24 hours, and a complete FA failure analysis report will be issued within 3 working days;
• Improved samples, PCB adaptation drawings, and soldering process specifications are provided free of charge during the warranty period;
• For large-volume, long-term cooperative customers, backup safety stock can be reserved, and priority will be given to reshipping products without interrupting production in case of quality issues;

Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in 40 pin male header connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in 40 pin male header connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
