Champ Connector


Why Choose Us

Quality Assurance

Our company has ample testing equipment for material analysis, environmental testing, electrical, mechanical, and environmental characteristics testing, failure analysis, dimensional measurement, etc., ensuring comprehensive quality assurance.

Customized Solutions

Sometimes standard products may not meet your application specifications or functional requirements. We possess the experience and expertise needed to develop innovative, customized design solutions.

Our Team

We have over 20 professional engineers, 100 experienced operators, and skilled quality control personnel.

Our Certifications

We hold ISO9001, IATF16949, RoHS, REACH, and UL certifications.





Advantages of Champ Connector
Reliability
Their robust design and high - quality manufacturing ensure reliable performance over an extended period. This is crucial in outdoor applications where frequent maintenance or replacement of connectors may not be feasible.
Versatility
With different types and configurations available, Champ connectors can be used in a wide range of outdoor systems, such as outdoor lighting, surveillance cameras, and communication towers.
EMI Shielding
The metal - shelled connectors provide effective EMI shielding, which is important in outdoor environments where there may be multiple sources of electromagnetic interference.



Specification of Champ Connector

Product name

Champ connector

Gender

Gender

PCB Mount Style

Right Angle

Number of Terminal

100pin

Connector Style

Receptacle

Contact pin Material

Phosphor Bronze

Shield Plating

Nickel

Mounting Option

Spring Latches

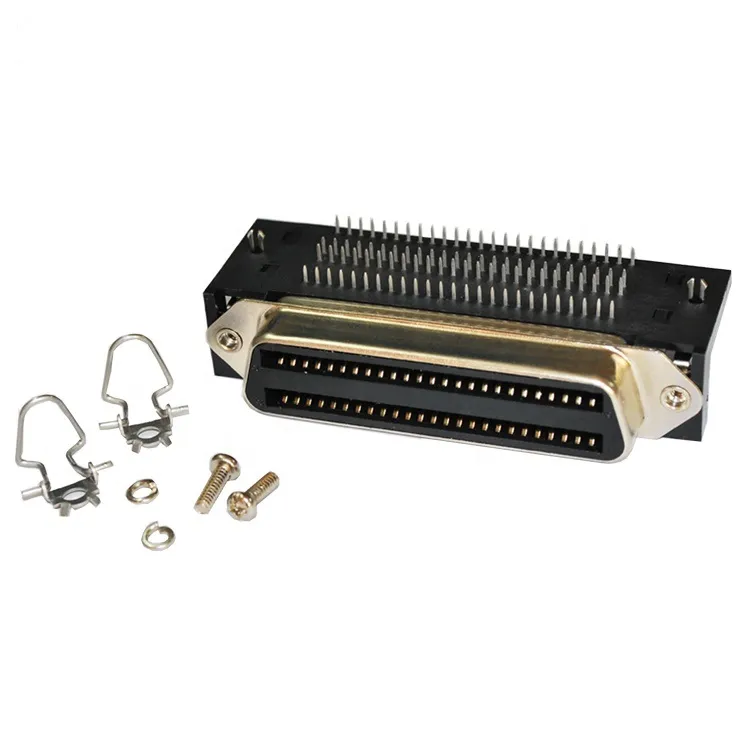

Champ 100pin Connector Socket



Features of Champ Connector

High Density: Compact for maximizing PC board space.


Wave Solderable: Suitable for automated assembly.


Intermateable: Works with existing connectors.


Space-saving: 0.6mm centerline saves board space.


Low profile: Smaller height for compact devices.


Applications: Tablets, laptops, mobile devices.


Durable: Full metal shells for robustness.


Retention: Screwlocks, bail locks for secure mating.



Application of Champ Connector


Outdoor lighting systems

In large - scale outdoor lighting projects, champ connectors are used to connect the lighting fixtures to the power supply. Their reliable connections ensure consistent illumination, even in adverse weather conditions. The sealing gaskets in the connectors prevent water from entering, protecting the electrical components from damage.

Surveillance cameras

Outdoor surveillance cameras require stable electrical connections to transmit high - quality video signals. Champ connectors, with their low - resistance pins and secure locking mechanisms, ensure that the cameras can operate continuously without signal loss. The metal - shelled connectors also provide protection against emi, which is essential for clear video transmission.



Packing and Shipping of Champ Connector

Packing

PE Bag

Shipping

Shipped by road, sea, rail





FAQ



Q: Can champ connectors be customized for specific applications?

A: Yes, champ connectors are highly customizable to meet the unique demands of various industries and operational environments.

Q: Are champ connectors suitable for high-speed data transmission?

A: Absolutely. These connectors are engineered to support high-speed data transmission, making them ideal for modern communication and data-intensive applications.

Q: What materials are commonly used in champ connectors?

A: The durability and performance of champ connectors stem from the use

Q: Are champ connectors environmentally friendly?

A: Yes, modern champ connectors are increasingly designed with sustainability in mind, aligning with global environmental standards and corporate ESG goals.

Q: Do these connectors have special features for outdoor or harsh environments?

A: Yes, champ connectors are available with robust features specifically engineered for outdoor, industrial, and extreme environmental use.

We're professional champ connector manufacturers and suppliers in China, specialized in providing high quality ODM/OEM products. Please feel free to wholesale customized champ connector at competitive price from our factory.
