Advantages of MDR Connector


Secure & reliable connection

Uses threaded coupling rings or robust latches for a stable, secure mating that prevents accidental disconnections, even in industrial settings.

Durable

Built for continuous use and repeated mating cycles, with features like strain relief and durable housings, suitable for demanding environments.

Signal integrity

Features excellent shielding and stable impedance to minimize electromagnetic interference (emi) and noise, crucial for high-speed data.

Cost-effective

An affordable solution for maintaining or upgrading legacy systems or for new builds where high density and performance are needed without breaking the bank.



Specification of MDR Connector

SCSI 68P MALE SOLDER assembly type

Terminal

Copper alloy, contact area plated 5u"

Shell

SPCC, plated Ni

Housing

PBT+30%G.F. black

Cover

PBT+30%G.F. black

Electrical characteristics

a) Contact Current Rating: 1 Amp

b) Dielectric Withstanding Voltage:500V AC

c) Insulation Resistance: 500MΩ/Min

d) Contact Resistance: 35mΩ/Max

e) Operation Temperature: -20℃～+85℃

Application

Industrial equipment, motion control card, automation, robot;

Environmental standards

RoHS compliant



Features of MDR Connector


Pin Configuration and Arrangement

The MDR 68-pin connector features a precisely engineered pin layout with two rows of 34 pins each, arranged in a compact D-subminiature form factor.

MDR 68pin Connector

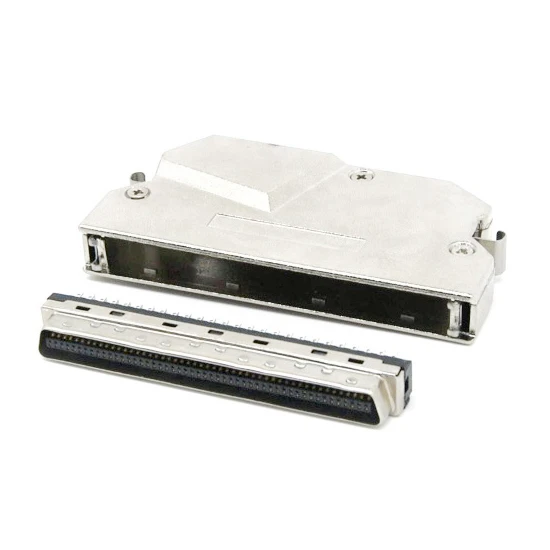

MDR 68pin Male Connector With Metal Shell

Screw Lock Mechanism

A defining feature of the pin connector is its integrated screw-locking system, which provides a secure, vibration-resistant connection.

Electrical Carrying Capacity

Engineered for both signal and power transmission, the MDR connector supports up to 5 amperes per pin, making it suitable for hybrid applications that require simultaneous data and power delivery.

MDR 68pin Male Connector
MDR 68pin Connector

Impedance and Signal Integrity

The MDR connector is designed with controlled impedance characteristics to maintain signal integrity in high-frequency applications.

Compliance with Industry Standards

MDR connectors are manufactured to meet rigorous international standards, ensuring reliability and interoperability in regulated and safety-critical environments.

MDR 68pin Male Connector With Metal Shell
MDR 68pin Male Connector

Durability and Environmental Resistance

Beyond electrical performance, the MDR connector excels in mechanical robustness and environmental resilience.



Application of MDR Connector



Sensors & Measurement Devices

Used in precision instruments like oscilloscopes, multimeters, and data acquisition systems, mdr connectors ensure accurate signal transmission with minimal interference.

01

Industrial Automation

Integral in plcs, motor drives, and hmi systems, these connectors link control units with sensors and actuators across factory floors.

02

Medical Devices

Employed in imaging systems (mri, ct), patient monitors, and surgical robots, where signal reliability directly impacts patient safety.

03

Aerospace & Defense

Used in avionics, radar systems, and satellite communication, where connectors must perform under extreme temperatures, radiation, and vibration.

04

Telecommunications

Supports high-frequency signal routing in base stations, fiber optic terminals, and network testing equipment. Optimized for high-speed data transmission.

05



Packing and Shipping of MDR Connector

Packing

PE Bag

Shipping

Shipped by road, sea, rail





FAQ



Q: What Are MDR 68-Pin Connectors Used For?

A: MDR 68-pin connectors are high-density interconnects designed for reliable, high-speed data transmission in mission-critical and demanding environments.

Q: How Do MDR Connectors Ensure Signal Integrity?

A: Signal integrity is a core strength of MDR 68-pin connectors, achieved through advanced design features that minimize noise, crosstalk, and signal loss—especially critical in high-frequency applications.

Q: Can MDR Connectors Be Used In Outdoor Applications?

A: Yes, MDR connectors are well-suited for outdoor use, particularly in ruggedized versions designed for aerospace, defense, and industrial outdoor systems.

Q: How Do MDR Connectors Differ From Other Circular Connectors?

A: While both MDR and standard circular connectors serve robust interconnection needs, MDR connectors stand out due to their specialized design for high-density, high-performance signal transmission.

We're professional mdr connector manufacturers and suppliers in China, specialized in providing high quality ODM/OEM products. Please feel free to wholesale customized mdr connector at competitive price from our factory.
