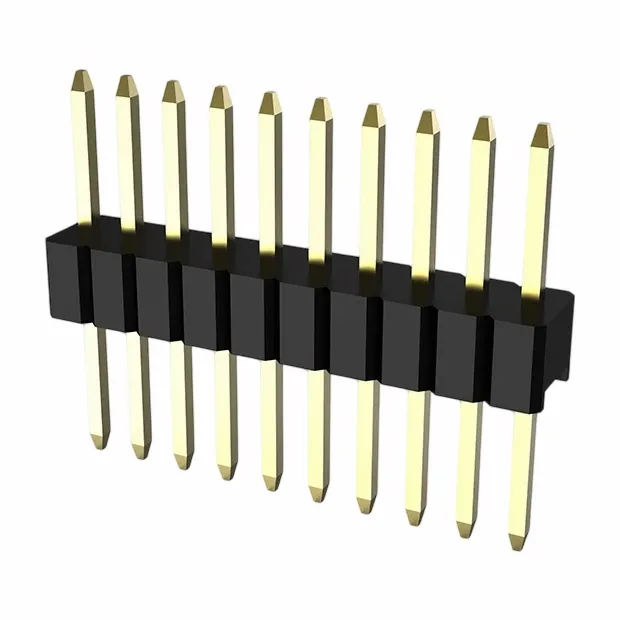

2.54mm Pin Header Single Row Straight

   This cost-effective 2.54mm single-row through-hole pin header features 3A current carrying capacity, low contact resistance, wide temperature range for easy wave soldering, multiple plating options, and a universal design. Compliant with UL94 V0 and RoHS standards, it is an economical alternative to the Molex KK 254/industry-standard 2.54mm series, suitable for medium to large OEM customers seeking ease of assembly, reliable performance, and supply chain flexibility.

Others

· 2D drawing

· Contact XHS to get 3D file

· RoHS & REACH compliant

· UL compliant

1. Standard Straight Through-Hole Design
The 2.54mm single-row straight pin header features a vertical through-hole configuration with copper alloy contacts and high-temperature plastic housing. this standard design supports efficient wave soldering and broad compatibility. It helps reduce assembly labor costs, shorten production cycles, lower material expenses, and improve manufacturing efficiency across power systems and IoT applications.
2. Full Regulatory Compliance
Manufactured to UL94 V0 flammability rating and fully RoHS & REACH compliant, this pin header meets essential industry standards. streamlined supplier qualification, reduced compliance risks, faster project certifications, and minimized potential regulatory delays or costly rework when sourcing for domestic and export markets.
3. Reliable Electrical Performance
With 3A current capacity, 20mΩ maximum contact resistance, and strong insulation across -40°C to +105°C, the connector ensures consistent signal and power transmission. lower field failure risks, reduce warranty claims, and enhance long-term project stability for OEM customers.
4. Consistent Quality from Automated Manufacturing
Advanced mechanized production processes deliver excellent batch-to-batch uniformity and traceability. predictable component quality, simplified incoming inspection, fewer defects, and reduced total procurement costs while supporting reliable volume production schedules.
5. Flexible Supply Chain Support
As a specialized manufacturer, we provide responsive lead times and flexible ordering options for this 2.54mm straight pin header. optimize inventory levels, simplify sourcing strategies, minimize supply risks, accelerate project timelines, and achieve better cost control without compromising performance.

1: Power Systems and Industrial Control Manufacturing
power systems and industrial control equipment manufacturers require standard, cost-effective pin headers that support efficient wave soldering and reliable performance for high-volume production. Our 2.54mm single-row straight pin header, featuring copper alloy contacts with tin or gold plating options, high-temperature plastic housing, 3A current capacity, and UL94 V0 & RoHS compliance, delivers consistent electrical performance in a widely compatible through-hole design. select this component for its predictable batch quality from mechanized production, competitive pricing, and responsive lead times. This choice results in reduced material and assembly costs, simplified supply chain management, lower defect rates, and improved production efficiency, ultimately enhancing project profitability and on-time delivery for industrial power and control product lines.
2: Office Equipment and Communication Network Production
for office equipment and communication network modules face ongoing pressure to control costs while ensuring component reliability and regulatory compliance. This 2.54mm single-row straight pin header provides stable signal and power transmission with low contact resistance and wide temperature tolerance from -40°C to +105°C. Its standard straight through-hole configuration simplifies wave soldering and supports efficient manufacturing processes. the consistent quality, flexible ordering quantities, and strong supply chain support. By adopting this solution, teams achieve lower total procurement expenses, reduced incoming inspection efforts, minimized compliance risks, and greater supply predictability - directly contributing to improved project margins and faster time-to-market.
3: IoT Devices and Material Handling Equipment Applications
IoT device and material handling equipment manufacturers need compact, reliable interconnects that balance performance with supply chain efficiency for medium-to-high volume production. Our 2.54mm single-row straight pin header offers dependable electrical characteristics and mechanical stability in a cost-effective package, supported by full RoHS compliance and consistent manufacturing quality. The straight design facilitates straightforward assembly and easy integration. this component for its short lead times, batch uniformity, and manufacturer flexibility. This leads to simplified sourcing, reduced inventory risks, lower overall costs, fewer production delays, and enhanced project stability for scalable IoT and industrial equipment lines.

    XHS actively provides technical support, sample testing, factory audits, traceability, and rapid response.

• Standard tin-plated models for consumer electronics/LEDs/home appliances have a 12-month warranty, calculated from the date of customer receipt; gold-plated thickened models and industrial control improved models have an extended warranty of 18 months; customized automotive IATF16949 models have a 24-month warranty.
• 24/7 technical after-sales support; customer complaints about failures will be responded to within 24 hours, and a complete FA failure analysis report will be issued within 3 working days;
• Improved samples, PCB adaptation drawings, and soldering process specifications are provided free of charge during the warranty period;
• For large-volume, long-term cooperative customers, backup safety stock can be reserved, and priority will be given to reshipping products without interrupting production in case of quality issues;

Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in 2.54mm male header connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in 2.54mm male header connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
