Products Description

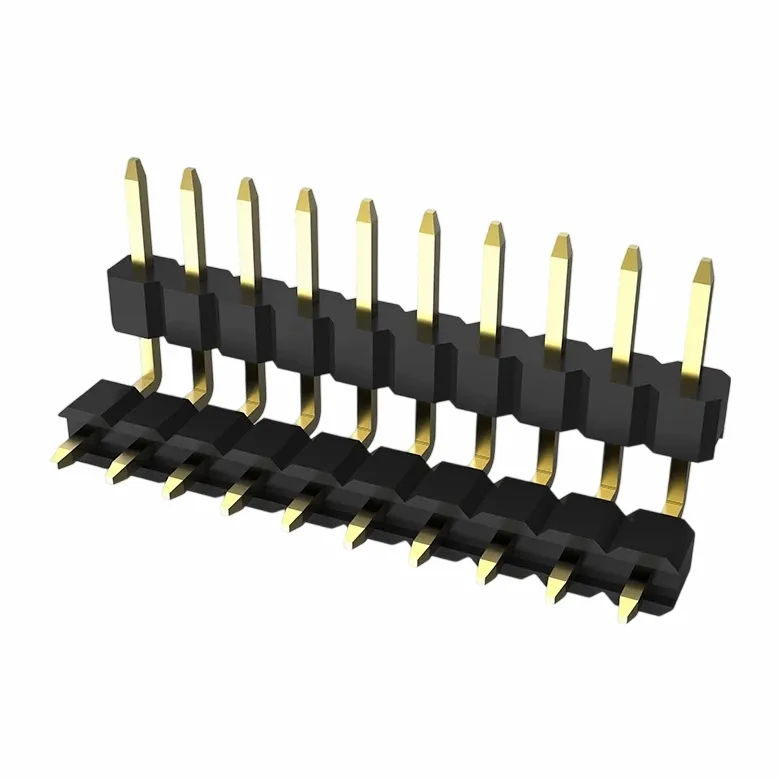

This connector shields pins with double wrap. It pokes through board spots. Contacts use metal blend. Case stands heat. Users pick it for safe links. Single row stays thin. Dual cover stops touches. It fits wire sets. We shape own types. Choices add tin layer for slow wear. All match RoHS. Check us for rules in parts.
Product Specification
|
Power Max |
3A, suits mild draws in tools |
|
Block Strength |
Over 1000MΩ, blocks slips in moist air |
|
Volt Stand |
500V AC, from usual checks |
|
Touch Strength |
Below 20mΩ, aids smooth run |
|
Warm Span |
-40°C to +105°C; some reach more but scan yours |
|
Layer Kind |
Tin core; gold for hard spots |
|
Build Items |
Metal contacts; UL94 V-0 plastic for flame stop |
|
Space Width |
2.54mm gap, single row for wrap guards |
Products Points
This connector guards pins full. It stops wrong plugs with notch. Dual wrap cuts shorts. Hole lock holds firm. Snap style allows cuts. Tips ease grab. Thin build saves area. It bears shakes in holds. We change totals. Think it as a protected path for cables.
Products Roles
This helps cables. Boards need it for shields. Sets use it in frames. Wires gain from safe holds. Control items fit well. Test gear handles it. Sound parts rely on it. Car tools use same kinds.
Add a item on build. Contacts use metal for flow. Case fights burn. Safe mark stops spread. Gap is 2.54mm. Sketches on call. Pin numbers shift. Wrap height like 2.5mm is common but look yours.
Advantages
● Good materials, all materials meet RoHS, REACH certification
● Perfect quality control from materials to finished products.
● Traceability of Order and raw material
● Systematic lab testing ability
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in breakable pin header connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in breakable pin header connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: Can I make changes to an order which I already placed?
A: Can be modified within a week after order confirmed.
Q: How much dielectric withstanding voltage is for XHS's connectors?
A: The circular and DIN connectors withstand 1000 V (AC) at 50 or 60 Hz for 60 seconds with no flashover or breakdown between every two contacts or between every contact and outer contour of the housing.
Q: Are all your parts listed online?
A: No, our items are too many, not all of items are listed online. If you can't find the part you need, send us photos of it to our website or complete the connector request form.
