Products Overview

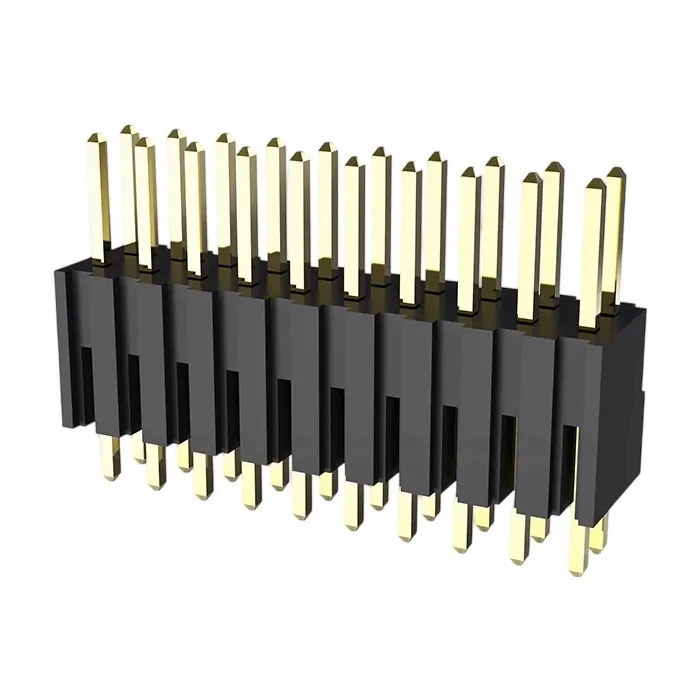

This connector points pins up in pairs through board holes. It carries signals in stack spots. Contacts use metal mix. Case bears heat. Users pick it for firm joins. Double row adds paths. 180-degree keeps straight. It fits basic builds. We make special ones. Options include tin layer for less wear. All follow RoHS. Ask us for other rules in areas.
Product Specifications
|
Current Max |
3A to 7A, good for standard loads in devices |
|
Insulation Resistance |
Over 1000MΩ, stops shorts in damp conditions |
|
Voltage Withstand |
500V AC, from common tests |
|
Contact Resistance |
Under 20mΩ, keeps flow smooth |
|
Temperature Range |
-40°C to +105°C; some go higher but check yours |
|
Plating Type |
Tin base; gold for better hold |
|
Material |
Metal contacts; UL94 V-0 plastic for fire stop |
|
Pitc |
h2.54mm, double row for dense setups |
Products Features
This connector aligns pins in twins. It supports board piles. DIP grips strong in holes. Wire fits vary. Shape helps correct plug. Ends aid handling. Tall form allows stacks. It takes shakes in gear. We adjust counts. See it as a straight pair for connections.
Products Applications
This works in stacks. Boards need it for ups. Tools use it in assemblies. Lights gain from twin holds. Control items fit well. Wire parts handle it. Test gear relies on it. Home devices use like kinds.
Add a section on build. Contacts use metal for pass. Case resists burn. Safe rating halts spread. Pitch is 2.54mm. Drawings on request. Pin totals vary. Straight height like 11mm is usual but confirm yours.
We adhere to RoHS for eco make. Case has UL94 V-0. Safety matters in electronics.
Ordering is easy. Try free samples. Share needs for custom. Email ron.ye@126.com. WhatsApp +8613902450680. Or WeChat. Our firm in Shenzhen has connector experience. We inspect all steps.
Features
● Help to make smaller finished product come true
● Simplify the assembly process of electronic products
● More convenient to replace and upgrade connectors
● Easy to replace old connectors, save more time and labor cost.
● Could solve critical size requirement problem.
● Low cost multiple pitches connectors per your application requirements.
Advantages
● According to the market demand, the product is continuously developed
● Perfect quality control from materials to finished products.
● Traceability of Order and raw material
● Systematic lab testing ability
● Various transporation method
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 16 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in 8 pin header female connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in 8 pin header female connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: What products do you produce?
A: Products include board-to-board connectors of pin headers, female headers, box header; board-to-wire connectors of wafer, FPC, RJ, and various customized wiring harnesses.
Q: How long is the sample lead time?
A: Generally samples need 3 days to 2 weeks, it depends on the materials stock.
Q: What are the shipping options?
A: Generally, we ship by international express such as FEDEX, DHL, TNT, UPS, etc., and by sea, air, or truck is aslo available.
