Products Description
· Current Rating: 1A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 300V AC
· Contact Resistance: 20mΩ Max
Product Introduction
Applications
· Elevators
· Industrial automation
· Medical equipment
· Office equipment
· Home appliances
· Servo drives
Specifications
· Current Rating: 1A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 300V AC
· Contact Resistance: 20mΩ Max
· Operating Temperature: -40°C - +105°C
· Solderability: Reflow capable up to 260°C
Materials
· Plating: Gold flash(0.8") Standard
Higher gold available
Tin
· Contact Material: Cooper Alloy
· Housing Material: High-temperature Thermoplastic
· Environmental: UL94 V0
Others

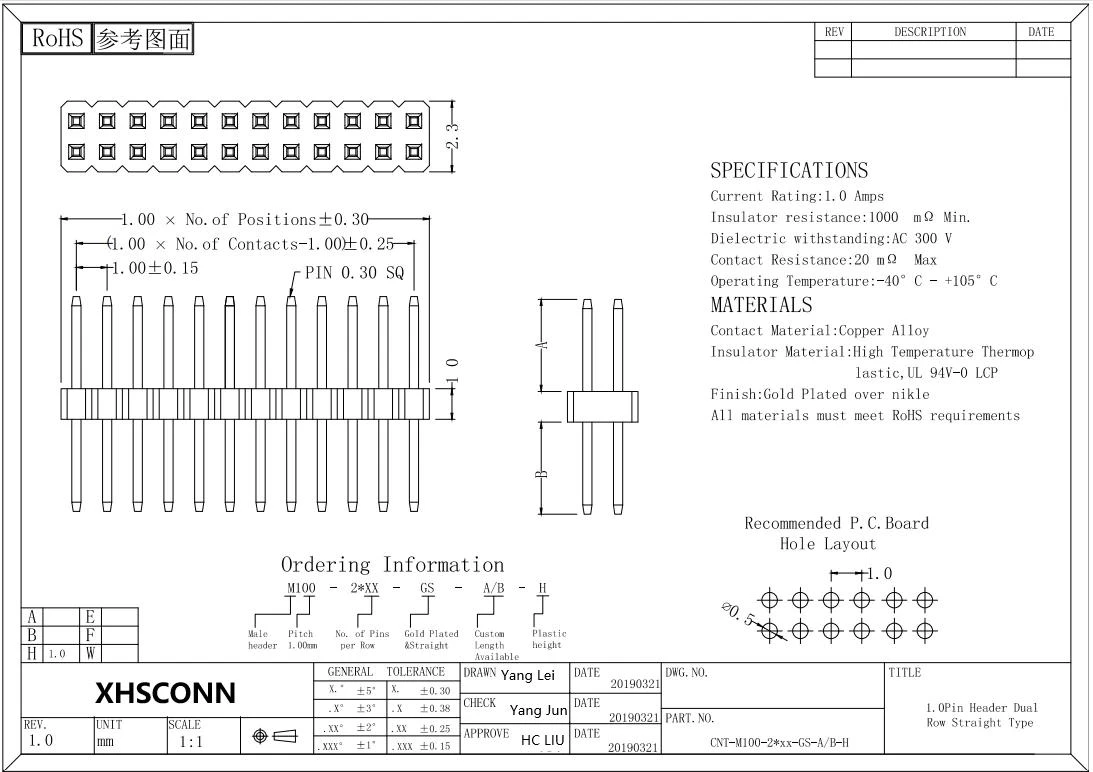

· 2D drawing
· Contact XHS to get 3D file
· RoHS & REACH compliant
· UL compliant
Features
● Help to make smaller finished product come true
● Simplify the assembly process of electronic products
● More convenient to replace and upgrade connectors
● Easy to replace old connectors, save more time and labor cost.
Advantages
● Free sample
● Perfect quality control from materials to finished products.
● Traceability of Order and raw material
● Systematic lab testing ability
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 16 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in board to board connector with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in board to board connector, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: How is the quality of your connectors?
A: The company has established a high-standard quality supervision system, and has passed the IATF16949 quality management system certification of the automotive industry and the ISO-9001:2008 quality system management system. Products from raw materials to final products will go through IQC, FAI, IPQC, OQC several times to ensure product quality. All raw materials are also certified by ROHS, REACH and UL.
Q: What are the forms of CAP for SMT products?
A: The default tape and reel packaging comes with a cap. And there are the following types of caps: mylar, plastic cap and metal cap. Some customers do not need a cap and need to be notified in advance.
Q: How much dielectric withstanding voltage is for CNT's connectors?
A: The circular and DIN connectors withstand 1000 V (AC) at 50 or 60 Hz for 60 seconds with no flashover or breakdown between every two contacts or between every contact and outer contour of the housing.
