Products Description
· Current Rating: 1A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 300V AC
· Contact Resistance: 20mΩ Max
Product Introduction
Applications
· Elevators
· Industrial automation
· Medical equipment
· Office equipment
· Home appliances
· Servo drives
Specifications
· Current Rating: 1A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 300V AC
· Contact Resistance: 20mΩ Max
· Operating Temperature: -40°C - +105°C
· Solderability: Reflow capable up to 260°C
Materials
· Plating: Gold flash(0.8") Standard
Higher gold available
Tin
· Contact Material: Cooper Alloy
· Housing Material: High-temperature Thermoplastic
· Environmental: UL94 V0
Others
· 2D drawing
· Contact XHS to get 3D file
· RoHS & REACH compliant
· UL compliant
Features
● Help to make smaller finished product come true
● Simplify the assembly process of electronic products
● More convenient to replace and upgrade connectors
● Easy to replace old connectors, save more time and labor cost.
Advantages
● Free sample
● Perfect quality control from materials to finished products.
● Traceability of Order and raw material
● Systematic lab testing ability
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 16 years, adhering to the belief of quality first and customer first.we are a reliable manufacturer in pin header socket connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in pin header socket connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: How long is your lead time?
A: XHS implements diversified management mode, with a monthly output of 75 million products, and it takes about 3-4 weeks from order placement to delivery.
Q: What products do you produce?
A: Products include board-to-board connectors of pin headers, female headers, box header; board-to-wire connectors of wafer, FPC,RJ, and various customized wiring harnesses.
Q: Will I pay duty tax on an international order?
A: Yes, duty tax is charged by your government when you order something outside of your country, not by our company.
Q: Are all your parts listed online?
A: No, our items are too many, not all of items are listed online. If you can't find the part you need, send us photos of it to our website or complete the connector request form.

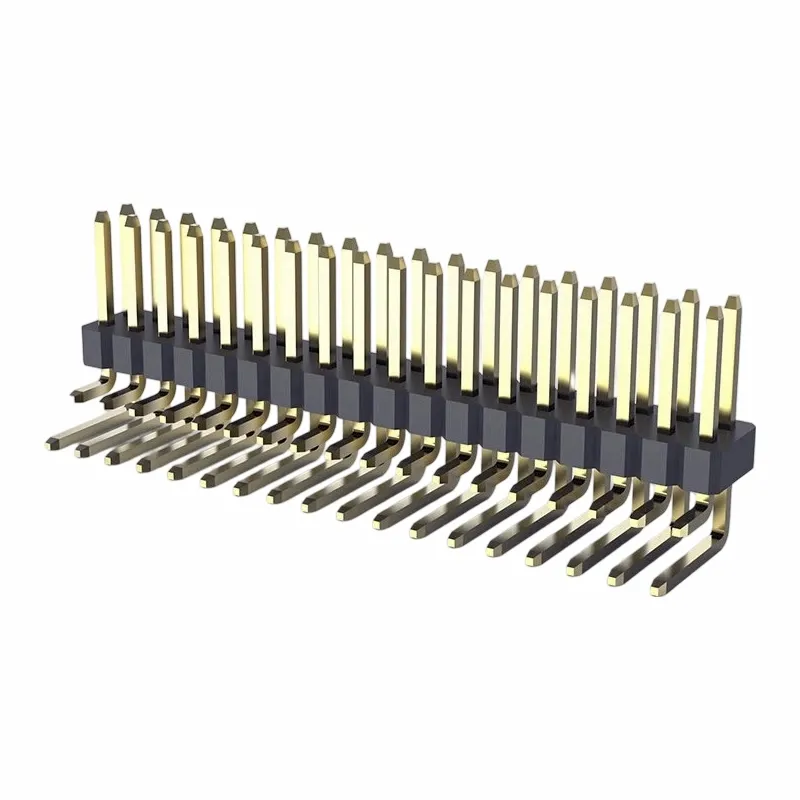

Hot Tags: 1.0mm pin header double row right angle dip, China 1.0mm pin header double row right angle dip manufacturers, suppliers, factory, 1 pin header
