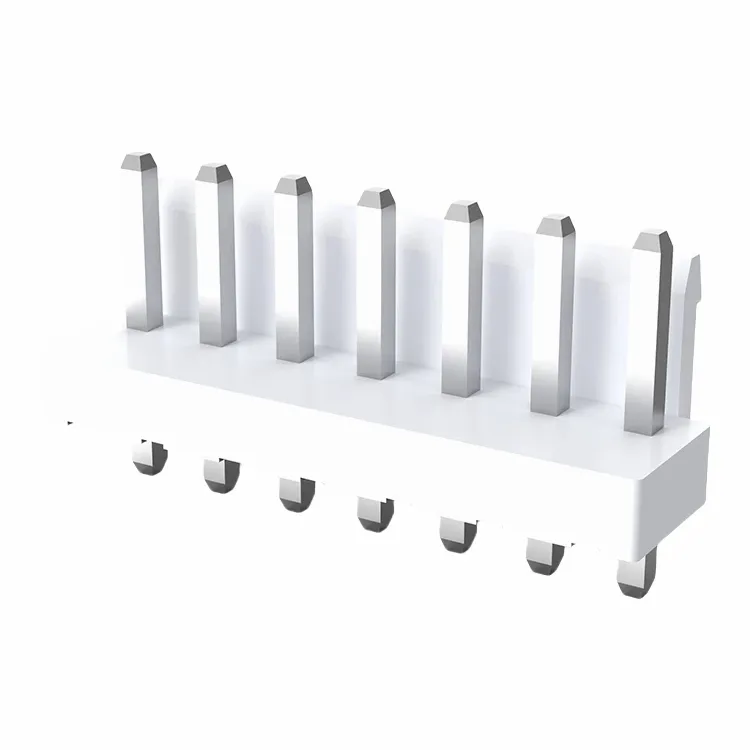

3.96mm Wafer Single Row Straight H9.4mm

      This 3.96mm pitch single-row through-hole wafer wire-to-board connector features a board height of 9.4mm and a through-hole design that perfectly adapts to wave soldering processes, significantly simplifying soldering procedures on production lines and improving batch assembly efficiency. The 9.4mm standard board height accommodates most PCB layouts with adequate space, ensuring stable and reliable dual-channel interconnection for power and signal signals, balancing long-term stability with overall system design requirements. As a mid-to-high-end domestic alternative to JST VH and Molex KK 3.96mm series connectors, this product offers electrical and mechanical interconnect performance comparable to leading imported brands, with no compromise in connection durability and reliability, while also boasting significant cost and supply chain advantages. Compared to international original equipment manufacturer (OEM) materials, it can significantly reduce procurement costs, drastically shorten delivery cycles, effectively mitigate the risks of overseas supply delays and stockouts, and help medium to large OEM customers optimize supply chain management and reduce the overall cost of ownership.

1. Efficient Straight DIP Configuration with H9.4mm Height
The 3.96mm single-row straight wafer connector with 9.4mm height supports standard vertical mounting and wave soldering processes using tin-plated copper alloy contacts and high-temperature plastic housing. this design simplifies supplier qualification, reduces assembly labor and tooling costs, shortens production cycles, and improves manufacturing efficiency while maintaining reliable performance across industrial and consumer electronics projects.
2. Full Industry Standards Compliance
Manufactured to UL94 V0 flammability rating and fully RoHS & REACH compliant, this connector meets essential regulatory requirements for multiple markets. Procurement benefit from streamlined vendor approval, reduced compliance risks, faster project certifications, and minimized potential delays or rework expenses when sourcing for regulated applications.
3. Stable Electrical Performance
Rated for 7A current with 20mΩ maximum contact resistance, 1000MΩ minimum insulation resistance, and 1500V AC dielectric strength across -25°C to +85°C, the connector ensures consistent power and signal transmission. This reliability helps lower field failure risks, reduce warranty claims, and enhance overall project stability for OEM customers.
4. Consistent Quality from Automated Manufacturing
Advanced mechanized production processes deliver excellent batch-to-batch uniformity and traceability for every 3.96mm wafer connector. Procurement teams gain from predictable quality, simplified incoming inspection, fewer defects, and reduced total procurement costs while supporting reliable volume production schedules.
5. Flexible Supply and Customization Support
As a specialized manufacturer, we provide responsive lead times and customization options for this single-row straight wafer connector. This flexibility allows procurement managers to optimize inventory levels, simplify sourcing strategies, accelerate development timelines, and strengthen supply chain resilience without compromising performance or compliance standards.

1: Our 3.96mm single-row straight wafer connector (H9.4mm) with tin-plated copper alloy contacts, 7A current rating, and full UL94 V0, RoHS & REACH compliance delivers consistent electrical performance and straightforward wave soldering compatibility. By sourcing this component, procurement teams benefit from predictable batch quality through automated manufacturing, flexible ordering quantities, and responsive lead times. This results in reduced incoming inspection efforts, lower total procurement costs, minimized supply risks, and improved project delivery timelines for high-volume smart infrastructure deployments.
2: Industrial Control and Appliance Manufacturing: This 3.96mm single-row straight DIP connector offers reliable 7A power transmission, low contact resistance, and wide temperature tolerance from -25°C to +85°C. Its H9.4mm vertical design simplifies PCB integration and manufacturing processes. Procurement teams choose this solution for its mechanized production consistency, regulatory compliance, and manufacturer support for customization. The outcome is streamlined vendor management, reduced defect rates and rework costs, enhanced supply predictability, and stronger overall project profitability.
3： LED Display and Video Equipment
Our 3.96mm straight wafer connector provides stable electrical characteristics, high insulation resistance, and industry-standard certifications in a cost-effective package. The straight DIP configuration with 9.4mm height optimizes board layouts and assembly efficiency. This enables procurement teams to simplify sourcing, shorten qualification cycles, maintain consistent quality across production batches, and reduce exposure to field failures - delivering measurable value through lower total ownership costs and on-schedule project execution.

Others

· 2D drawing

   Our company actively provides technical support, free sample testing, factory audits, and traceability. We emphasize rapid response and ISO/UL certification; global support is available. Typical warranties are 6-12 months, and returns/exchanges are usually limited to 7-30 days of unused goods with proof of quality.
