Products Introduction

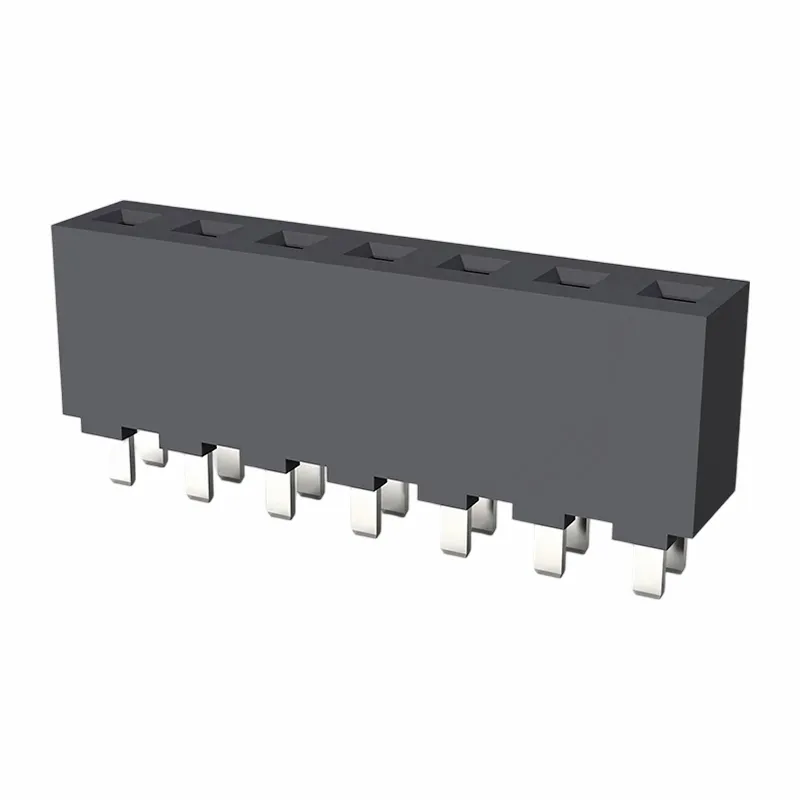

This connector builds a firm path between boards in layered designs. Formed with a plastic frame, it remains steady when boards overlap. The single row straight style joins male pins for tight bonds, helpful for signal routes in modules or tools. In lab trials, where stacks face warmth and movement, such links keep grips solid through ongoing use. We supply adjusted heights to match your plan, aiding smooth stacking. The tin finish lessens rust, backing clear flows in regular duties. All elements follow RoHS guidelines for safe parts, The housing's UL94 V-0 boosts safety, with REACH as a choice for select markets-confirm for your group.
Products Specifications
|
Current Load |
Up to 7.9A maximum, matching moderate streams in sensors or controllers |
|
Insulation Barrier |
At least 1000MΩ, blocking leaks in damp places |
|
Voltage Strength |
1000V AC, from routine safety trials |
|
Contact Fall |
No more than 30mΩ, keeping flow efficient |
|
Heat Scope |
From -40°C to +105°C; some endure broader but examine yours |
|
Surface |
Tin base; gold flash available for added toughness-verify depth like 1-3μ" for your batch |
|
Makeup |
Brass terminals for flow; high-temperature plastic housing rated UL94 V-0 to curb flames |
|
Setup |
5.08mm spacing, single row for sharp matches |
Product Traits
The plastic frame shields well, a plus in layered circuits where shorts pose threats. Openings clutch pins tight, usual in trial projects to stop slips amid motion. Simple top fix hastens assembly, dropping outlays in small lots. The black case merges with boards, and we tweak setups for your tasks-regard it as a versatile foundation in plan puzzles. Light makeup eases fitting, noted in module installs where weight affects pace.
Terminals tap brass for solid flow, joined with a plastic case that withstands warmth-rated UL94 V-0 to limit fire dangers if troubles occur. The 5.08mm layout lets packed plans, yet sketches are ready on ask for dead-on matches; height shifts meet regular custom asks in development systems.
Products uses
Links like this prosper in sensors for steady clasps, or modules with squeezed room. Test boards gain from the firm grip, and prototype arrangements count on trustworthy holds amid experiments. In vehicle panels or smart cores, it works as a vital point for signals or divides routes when called for. We've spotted it in embedded systems too, easing growth without extra props.
Ordering flows easy: Seek free tests to gauge match. Custom jobs are direct-just send info. Link ron.ye@126.com, WhatsApp +8613902450680, or WeChat. Our Shenzhen group, skilled in connectors, scans from base parts to close checks for evenness.
Advantages
● Perfect quality control from materials to finished products.
● Traceability of Order and raw material
● Systematic lab testing ability
● Mature R&D team
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in female sockets connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in female sockets connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: How long is your lead time?
A: XHS implements diversified management mode, with a monthly output of 75 million products, and it takes about 3-4 weeks from order placement to delivery.
Q: What are the packaging methods?
A: There are different packaging methods according to different products, specifically PE bags, blister boxes, blister trays, tubes and tape & reel.
Q: How long is the sample lead time?
A: Generally samples need 3 days to 2 weeks, it depends on the materials stock.
