Products Introduction

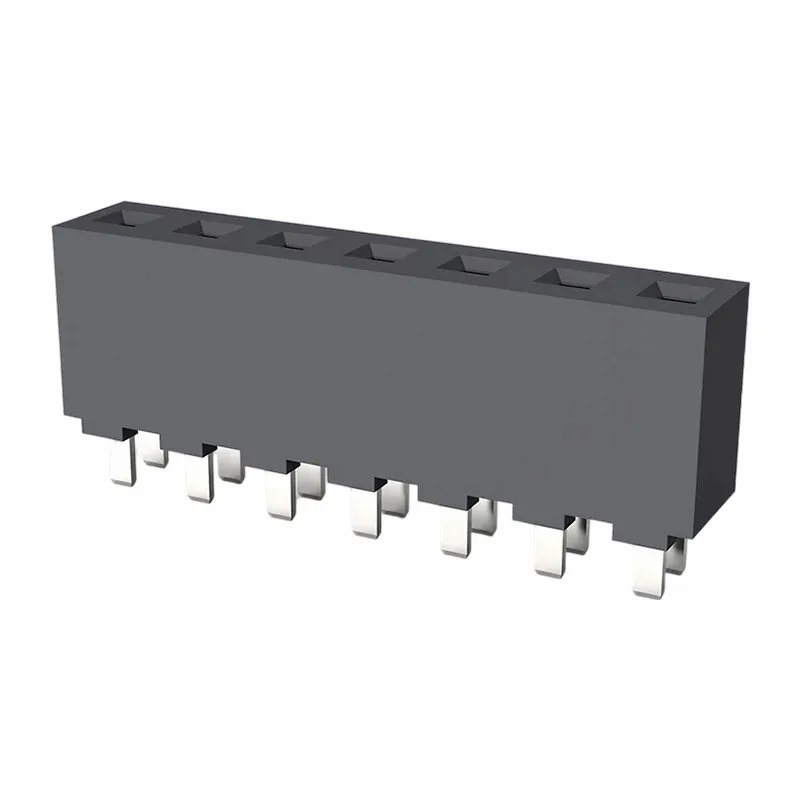

This connector offers a secure place for pins on circuit boards. Shaped with a plastic frame, it holds steady in overlapped setups. The single row straight style grabs male pins for tight links, useful for signal trails in devices or regulators. In bench tests, where boards face stacks and warmth, such spots keep holds solid through ongoing cycles. We provide shifted lengths to fit your plan, helping smooth fitting. The tin covering lessens decay, aiding sharp passes in daily runs. All parts stick to RoHS rules for harmless elements, The housing's UL94 V-0 boosts safety, with REACH as a pick for some markets-check for your group.
Product Specifications
|
Current Load |
Up to 7.9A maximum, matching moderate streams in sensors or hubs |
|
Insulation Barrier |
At least 1000MΩ, blocking leaks in wet areas |
|
Voltage Strength |
1000V AC, from usual safety trials |
|
Contact Drop |
No more than 30mΩ, keeping flow efficient |
|
Heat Scope |
From -40°C to +105°C; some endure broader but examine yours |
|
Surface |
Tin base; gold flash available for added toughness-verify depth like 1-3μ" for your batch |
|
Composition |
Brass terminals for pass; high-temperature plastic housing rated UL94 V-0 to curb flames |
|
Layout |
5.08mm spacing, single row for sharp matches |
Products Traits
The plastic frame shields well, an edge in layered circuits where shorts pose risks. Openings clutch pins firm, usual in test projects to stop slips amid motion. Simple top mount quickens putting together, trimming expenses in small lots. The black case blends with boards, and we adjust setups for your jobs-see it as a versatile foundation in design puzzles. Light build simplifies placing, noted in module fittings where weight affects pace.
Terminals tap brass for solid flow, joined with a plastic case that withstands warmth-rated UL94 V-0 to limit fire dangers if troubles occur. The 5.08mm layout lets packed plans, yet sketches are ready on ask for dead-on matches; length shifts meet regular custom asks in development systems.
Products uses
Receivers like this prosper in sensors for steady clasps, or modules with squeezed room. Test boards gain from the firm grip, and prototype arrangements count on trustworthy holds amid experiments. In vehicle panels or communication cores, it works as a vital point for signals or divides routes when called for. We've spotted it in IoT units too, easing growth without extra props.
Ordering flows easy: Seek free tests to gauge match. Custom jobs are direct-just send info. Link ron.ye@126.com, WhatsApp +8613902450680, or WeChat. Our Shenzhen group, skilled in connectors, scans from base parts to close checks for evenness.
Advantages
● Perfect quality control from materials to finished products.
● Mature R&D team
● Mechanized production, stable quality
● Professional consultancy & technical support
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in high speed female header pins connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in high speed female header pins connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: Can I make changes to an order which I already placed?
A: Can be modified within a week after order confirmed.
Q: What is the operating temperature range for XHS's connectors?
A: It's -40°C - +105°C.
Q: How durable are XHS's connectors?
A: 100 cycles.
