Products Introduction

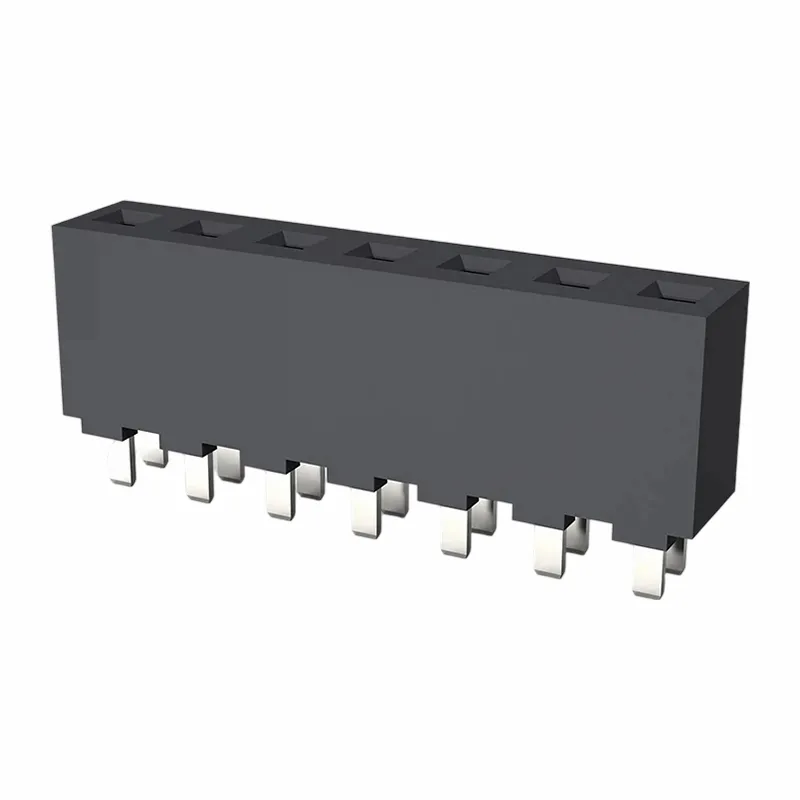

This connector serves as a reliable anchor for pins on circuit boards. Formed with a plastic structure, it remains steady in layered configurations. The single row straight form secures male pins for firm attachments, practical for data channels in tools or units. In evaluation labs, where boards manage overlays and heat, such bases sustain connections through ongoing cycles. We supply modified heights to suit your design, facilitating seamless incorporation. The tin finish minimizes corrosion, aiding crisp transmissions in routine operations. All components comply with RoHS standards for safe elements, The housing's UL94 V-0 enhances safety,with REACH available for select markets-verify for your batch.
Products Specifications
|
Current Load |
Up to 7.9A maximum, fitting moderate currents in sensors or controllers |
|
Insulation Guard |
At least 1000MΩ, preventing leaks in moist environments |
|
Voltage Endurance |
1000V AC, from standard safety assessments |
|
Contact Loss |
No more than 30mΩ, ensuring smooth transfers |
|
Heat Range |
From -40°C to +105°C; some handle broader but test yours |
|
Coating |
Tin base; gold flash option for enhanced durability-check depth like 1-3μ" for your lot |
|
Composition |
Brass terminals for conductivity; high-temperature plastic housing rated UL94 V-0 to resist flames |
|
Arrangement |
5.08mm spacing, single row for precise alignments |
Products Traits
The plastic structure insulates effectively, a gain in stacked circuits where shorts present hazards. Slots grip pins securely, typical in experimental builds to prevent shifts amid movement. Easy top attachment accelerates assembly, reducing expenses in limited runs. The black exterior integrates with boards, and we customize configurations for your projects-regard it as a versatile foundation in design challenges. Lightweight construction simplifies positioning, noted in sensor installations where mass influences efficiency.
Terminals employ brass for efficient flow, combined with a plastic case that withstands warmth-rated UL94 V-0 to curb fire risks if issues arise. The 5.08mm layout enables compact arrangements, yet sketches are available on request for exact matches; configuration variations address common custom requests in development workflows.
Products uses
Bases like this excel in sensors for consistent grips, or units with confined space. Experimental boards benefit from the secure hold, and trial setups depend on dependable connections amid testing. In automotive dashboards or IoT hubs, it acts as a key receiver for signals or separates paths when required. We've noticed it in prototype systems too, facilitating expansions without additional supports.
Ordering proceeds smoothly: Request free samples to assess fit. Custom orders are straightforward-just provide details. Contact ron.ye@126.com, WhatsApp +8613902450680, or WeChat. Our Shenzhen team, experienced in connectors, inspects from raw components to final tests for uniformity.
Advantages
● Well package, protect products during long international transit
● Mechanized production, stable quality
● Fast delivery time of average 4 weeks
● Integrated production and assembly pocess can save your time to market and increase your profit.
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in female pin header for stereo connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in female pin header for stereo connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: What are the packaging methods?
A: There are different packaging methods according to different products, specifically PE bags, blister boxes, blister trays, tubes and tape & reel.
Q: What does your quality inspection process include?
A: Incoming material inspection, first article inspection, process inspection, finished product inspection, and outgoing inspection.
Q: What products do you produce?
A: Products include board-to-board connectors of pin headers, female headers, box header; board-to-wire connectors of wafer, FPC, RJ, and various customized wiring harnesses.
