Products Overview

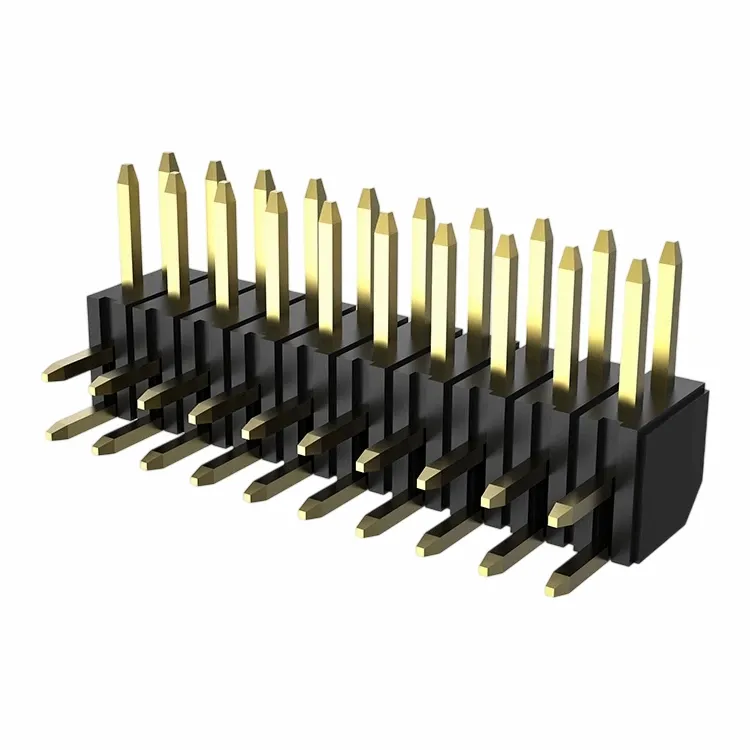

This connector turns pins out in pairs through board gaps. It carries signals in side spots. Contacts use metal mix. Case holds warmth. Users choose it for edge ties. Double row packs paths. 90-degree bends side. DIP locks in drills. It works in firm sets. We make special kinds. Options add tin coat for less wear. All follow RoHS. Ask us for rules in areas.
Product Specifications
|
Power Top |
1.5A to 2A, fits light loads in gear |
|
Block Drag |
Above 1000M ohms, halts shorts in moist air |
|
Volt Keep |
500V AC, from normal tests |
|
Touch Drag |
Under 20m ohms, eases flow |
|
Warm Spread |
-40°C to +105°C; some hit +125°C but scan yours |
|
Coat Sort |
Tin base; gold over nickel for strong wear |
|
Build Bits |
Brass contacts; UL94 V-0 plastic for burn halt |
|
Gap Width |
2.0mm pitch, double row for turn lines |
Products Traits
This connector angles pins for side joins. It doubles ties in packs. DIP grips sure in holes. IP67 blocks dust in variants. Stack sizes vary. Ends help pick. Curve form shrinks spot. It stands tugs in tools. We alter totals. View it as a twin bend for signals.
Contacts use brass for pass. Case blocks fire. Safe tag stops spread. Gap is 2.0mm. Plans on need. Pin counts vary. Bend height like 2.0mm is standard but look yours.
Products Uses
This serves GPS. Boards need it for curves. Scanners use it in frames. IoT gains from pair holds. Audio items fit well. Video parts handle it. Monitors rely on it. Auto sets use similar kinds.
Rules grow here. We track RoHS for safe make. Case has UL94 V-0. Guard matters in builds.
Order runs smooth. Take free checks. Pass wants for own. Write ron.ye@126.com. WhatsApp +8613902450680. Or WeChat. Our spot in Shenzhen carries connector skill. We view each bit.
Features
● Help to make smaller finished product come true
● Stable Connection
● More convenient to replace and upgrade connectors
● Compachness of electronic products
● Easy assembling and low production cost
● High reliable board interconnecting
Advantages
● Fast delivery time of average 4 weeks
● Perfect quality control from materials to finished products.
● Traceability of Order and raw material
● Systematic lab testing ability
● According to the market demand, the product is continuously developed
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in male header pins connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in male header pins connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: What is the operating temperature range for XHS's connectors?
A: It's -40°C - +105°C
Q: How much dielectric withstanding voltage is for XHS's connectors?
A: The circular and DIN connectors withstand 1000 V (AC) at 50 or 60 Hz for 60 seconds with no flashover or breakdown between every two contacts or between every contact and outer contour of the housing.
Q: What is the shipping charge for international packages?
A: For any international package, if you have questions about shipping costs, contact our customer service department. You will need to provide your shipping address so we can better help you with shipping charges.
Q: How do you handle data security and privacy for customer information?
A: Firstly, we have signed confidentiality agreements with employees.
Secondly, we limit access to customer information only to those who need it for their job.
Thirdly, we store customer information in a secure location.
Last, we always emphasize the importance of protecting customer information to employees.
