ProductSDR-M-V26-X AttributesSupply Ability & Additional Information Packaging & Delivery
Description
Product Attributes
Model No.: SDR-M-V26-X Brand: ANTENKplace of origin: ChinaOperating Frequency: High FrequencyTerminal Structure: Terminal Under the PremiumHousing: PlasticCircuit: 1-400Impedance: 85-100 OhmsMated Height: OtherGender: OtherApplication: militaryCertification: OtherPitch: 1.27mmInterface Type: AC/DCSupport Card Number: OtherTerminal Material: Copper Alloy
Supply Ability & Additional Information
Packaging: bag packing,Tube packing, reel packingProductivity: 2000K/monthTransportation: Ocean,Air,ExpressPlace of Origin: ChinaSupply Ability: 2000K/monthCertificate: ISO9001HS Code: 8536909000Payment Type: T/T,Paypal,Western UnionIncoterm: FOB,CIF,EXW,FCA
Packaging & Delivery
Selling Units:
Piece/Pieces
Package Type:
bag packing,Tube packing, reel packing

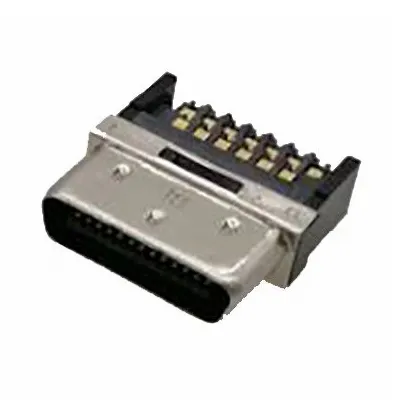

0.8mm Shielded 26P Cable Plug Connector Solder Molded Ribbon Type
Specifications
Voltage Rating：25V AC/RMS
Current Rating：0.5A
Contact Resistence: 70mΩ Max
Withstanding Voltage：350V AC/minute
Insulation Resistance: 1000MΩ min at 25V DC
Temperature Range：-40℃-+70℃
Specifications
Rated voltage:30V AC (r.m.s.)
Rated current:0.3 A
Insulation resistance:Over 500 MΩ at 100V DC
Dielectric withstanding voltage:250V AC (.m.s.)
Contact resistance:100 MΩ or less
1.27mm Series 68P Receptacle Headers Right-Angle Mount Pin Type
SPECIFICATIONS:
1.Electrical Characteristics:
1.1 Contact Current Rate:3AMP
1.2 Insulation Resisitance:500MΩ Minimum
1.3 Contact Resistance:25mΩ Maximum
1.4 Dielectric Voltage:500V AC For One Minute
2.Material:
2.1 Insulator:PBT+30%G/F
2.2 Contact:C5191-H
2.3 Board Lock:Brass
2.4 Bracket:Zinc Alloy
3.Finish:
3.1 Bracket:Nickel Plated
3.2 Contact:Gold Plated On Contact Area,Tin Plated
On Soldering End,Nickel Under-Plating
4.Enviroment:
Operation Temperature: -55°C To +125°C
