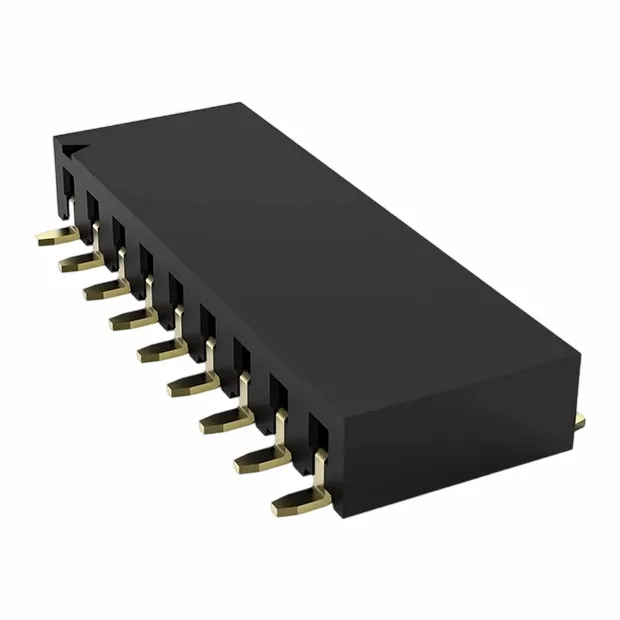

Products Description
· Current Rating: 3A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 600V AC
· Contact Resistance: 20mΩ Max
Product Introduction
Applications
· Office equipment
· Home appliances
· Servo drives
· Smart Meters & Terminals
· PCBA
· Security equipment
· Power systems
· Communication networks
Specifications
· Current Rating: 3A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 600V AC
· Contact Resistance: 20mΩ Max
· Operating Temperature: -40°C - +105°C
· Solderability: Reflow capable up to 260°C
Materials
· Plating: Gold flash(0.8") Standard
Higher gold available
Tin
· Contact Material: Cooper Alloy
· Housing Material: High-temperature Thermoplastic
· Environmental: UL94 V0
Others
· 2D drawing
· Contact XHS to get 3D file
· RoHS & REACH compliant
· UL compliant
Features
● Improved control over current and voltage
● Reduced cost of materials
● Provide electrical isolation, preventing electrical currents from flowing between connected components.
● Offer scalability, allowing you to expand or modify a system as needed.
Advantages
● Well package, protect products during long international transit
● Good materials, all materials meet RoHS, REACH certification
● According to the market demand, the product is continuously developed
● Integrated production and assembly pocess can save your time to market and increase your profit.
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS)has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in male female connector with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in male female connector, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: What are the safety and regulatory requirements for board-to-board connectors?
A: 1)Electrical safety.
2)Material safety.
3)Environmental safety.
4)Mechanical safety.
5)Regulatory compliance
Q: How does the size and pitch of the connector affect performance?
A: The size and pitch of a board-to-board connector can have a significant impact on its performance in an electronic system. Here are some ways that size and pitch can affect performance:
1)Electrical Performance.
2)Mechanical Strength.
3)Temperature Performance.
4)Manufacturing and Assembly.
Q: How do you determine the number of contacts and the spacing between them for a board-to-board connector?
A: Spacing and contacts of board to board connectors are confirmed according to customers' requirement.
