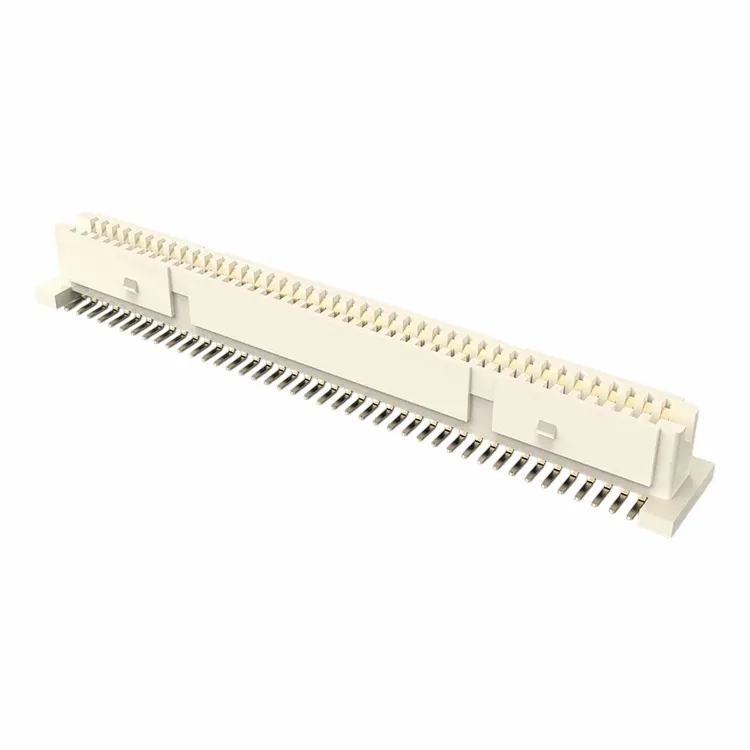

1.0mm High Speed Female Double Row SMT

· Current Rating: 0.5A Max
· Insulation Resistance: 500MΩ Min
· Dielectric Withstanding: 200V AC
· Contact Resistance: 30mΩ Max

Applications

· Servo drives

· Material handling equipment

· IoT

· Industrial controls

· Robotics

· Instrumentation and test equipment

· Audio

· Video

Specifications

· Current Rating: 0.5A Max

· Insulation Resistance: 500MΩ Min

· Dielectric Withstanding: 200V AC

· Contact Resistance: 30mΩ Max

· Operating Temperature: -40°C - +105°C

· Solderability: Reflow capable up to 260°C

Materials

· Plating: Gold flash(0.8") Standard

Higher gold available

Tin

· Contact Material: Cooper Alloy

· Housing Material: High-temperature Thermoplastic

· Environmental: UL94 V0

Others

· 2D drawing

· Contact XHS to get 3D file

· RoHS & REACH compliant

· UL compliant

● Low cost multiple pitches connectors per your application requirements.
● Light weight and flexible.
● Compachness of electronic products
● Easy assembling and low production cost

● Mechanized production, stable quality
● Complete product range, full pitch series
● Good materials, all materials meet RoHS, REACH certification
● Both small and large orders are acceptable

Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in 2mm female header connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in 2mm female header connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!

Hot Tags: 1.0mm high speed female double row smt, China 1.0mm high speed female double row smt manufacturers, suppliers, factory, 1.0mm female header
