Products Description
· Current Rating: 1A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 300V AC
· Contact Resistance: 20mΩ Max
Product Introduction
Applications
· Stereo Amplifier
· LED Screen
· Smart Meters & Terminals
· PCBA
· Robotics
· Instrumentation and test equipment
· Audio
· Video
Specifications
· Current Rating: 1A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 300V AC
· Contact Resistance: 20mΩ Max
· Operating Temperature: -40°C - +105°C
· Solderability: Reflow capable up to 260°C
Materials
· Plating: Gold flash(0.8") Standard
Higher gold available
Tin
· Contact Material: Cooper Alloy
· Housing Material: High-temperature Thermoplastic
· Environmental: UL94 V0
Others
· 2D drawing
· Contact XHS to get 3D file
· RoHS & REACH compliant
· UL compliant
Features
● Improved resistance to chemicals.
● Increased data rates
● Resistant to moisture, dust, and other elements.
● Long lifespan in demanding applications.
Advantages
● Free sample
● Perfect quality control from materials to finished products.
● Traceability of Order and raw material
● Systematic lab testing ability
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS)has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in right angle female header connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in right angle female header connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: What are the different types of connectors available in the market?
A: There are several different types of board-to-board connectors available in the market, including:
Standard connectors: These are simple connectors that are used to join two PCBs. They come in various pitches and styles, such as through-hole or surface-mount.
Board-to-board stacking connectors: These connectors are used to stack multiple PCBs on top of each other. They have a small profile and are designed to allow for signal and power transmission between stacked PCBs.
Board-to-board mezzanine connectors: These connectors are used to connect two PCBs perpendicular to each other. They are typically used in applications where there is limited space and a small profile is required.
Wire-to-board connectors: These connectors are used to connect wires to PCBs. They are available in various pitch sizes and styles, including crimp-on and insulation displacement connectors.
FFC/FPC connectors: These are flexible flat cable/flexible printed circuit connectors, used to connect flat cables or flexible printed circuits to a PCB.
Mating board connectors: These connectors are designed to mate with a specific PCB or component. They are often used in custom applications where a specific interface is required.
High-speed board-to-board connectors: These connectors are designed to handle high-speed signal transmissions. They are typically used in applications such as data centers, servers, and networking equipment.
Power board-to-board connectors: These connectors are designed to handle high-power applications. They are typically used in applications such as power supplies and motor control systems.
Q: What is your delivery time for international orders?
A: Delivery time of our items are 3-4 weeks, and international transit time is 1-2 weeks.
Q: Can you provide product demonstrations and presentations?
A: Yes.

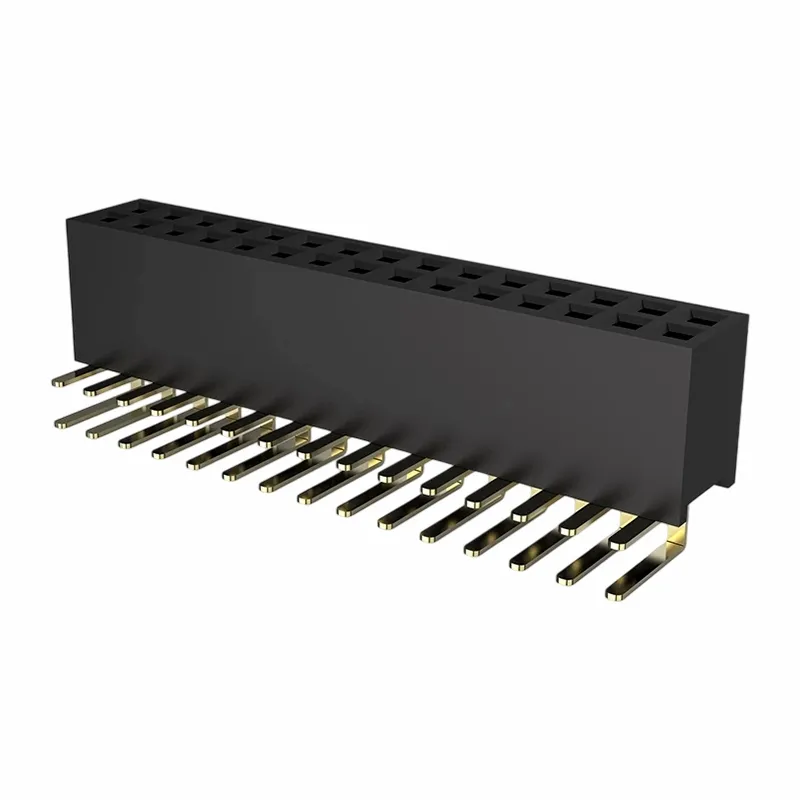

Hot Tags: 1.0mm female header double row right angle dip, China 1.0mm female header double row right angle dip manufacturers, suppliers, factory, 1.0mm female header
