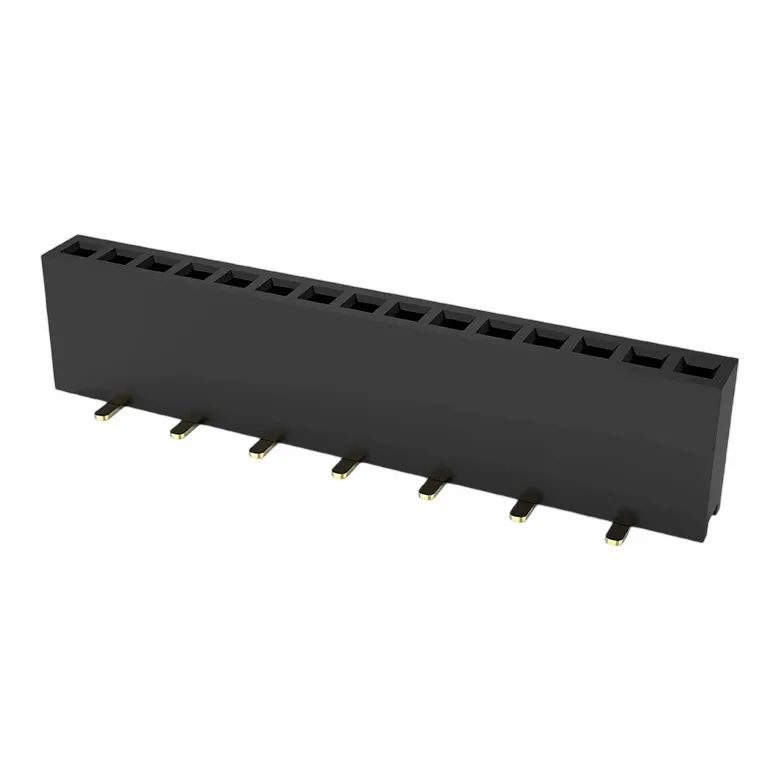

1.0mm Female Header Single Row SMT

· Current Rating: 1A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 300V AC
· Contact Resistance: 20mΩ Max

Applications

· Stereo Amplifier

· LED Screen

· Smart Meters & Terminals

· PCBA

· Robotics

· Instrumentation and test equipment

· Audio

· Video

Specifications

· Current Rating: 1A Max

· Insulation Resistance: 1000MΩ Min

· Dielectric Withstanding: 300V AC

· Contact Resistance: 20mΩ Max

· Operating Temperature: -40°C - +105°C

· Solderability: Reflow capable up to 260°C

Materials

· Plating: Gold flash(0.8") Standard

Higher gold available

Tin

· Contact Material: Cooper Alloy

· Housing Material: High-temperature Thermoplastic

· Environmental: UL94 V0

Others

· 2D drawing

· Contact XHS to get 3D file

· RoHS & REACH compliant

· UL compliant

● Easy debugging.
● High compressive strength
● Good heat resistance
● Not easily damaged

● Mechanized production, stable quality
● Complete product range, full pitch series
● Good materials, all materials meet RoHS, REACH certification
● Both small and large orders are acceptable
