Products Description
· Current Rating: 3A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 600V AC
· Contact Resistance: 20mΩ Max
Product Introduction
Applications
· Power systems
· IoT
· Home appliances
· Servo drives
· Security equipment
· Monitor
· LED Screen
Specifications
· Current Rating: 3A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 600V AC
· Contact Resistance: 20mΩ Max
· Operating Temperature: -40°C - +105°C
· Solderability: Reflow capable up to 260°C
Materials
· Plating: Gold flash(0.8") Standard
Higher gold available
Tin
· Contact Material: Cooper Alloy
· Housing Material: High-temperature Thermoplastic
· Environmental: UL94 V0
Others
· 2D drawing
· Contact XHS to get 3D file
· RoHS & REACH compliant
· UL compliant
Features
● Easy assembling and low production cost
● Simple and clean internal design
● Simplify manufacturing procedure
● Reduct the production cost
Advantages
● Free sample
● Perfect quality control from materials to finished products.
● Traceability of Order and raw material
● Systematic lab testing ability
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in boxed header connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in boxed header connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: What is the insulation resistance for XHS's connectors?
A: It's upon to different pitch, please check the drawing to get the specific informaiton.
Q: How much dielectric withstanding voltage is for XHS's connectors?
A: The circular and DIN connectors withstand 1000 V (AC) at 50 or 60 Hz for 60 seconds with no flashover or breakdown between every two contacts or between every contact and outer contour of the housing.
Q: What material are XHS's connectors made of?
A: XHS's connectors are made of rugged glass-filled PBT and PA.

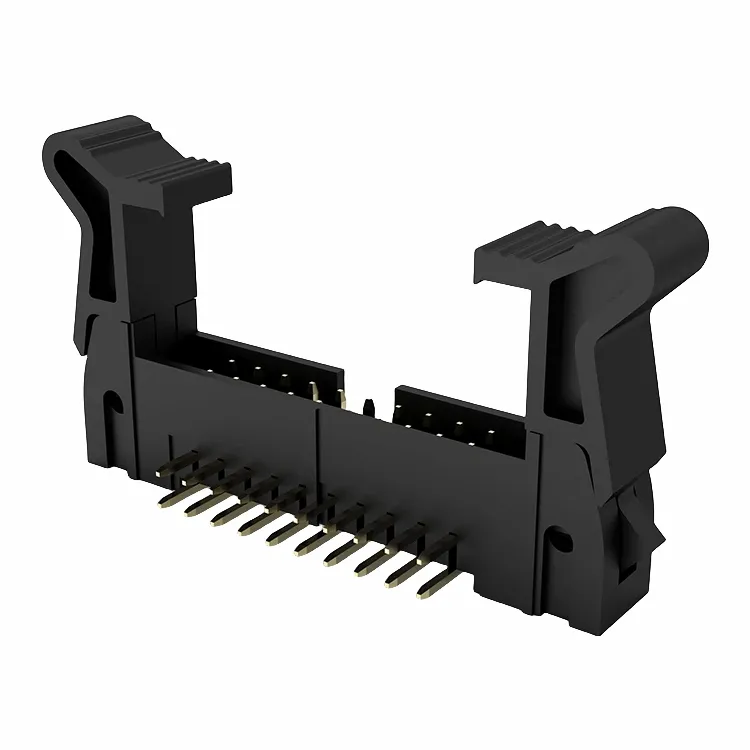

Hot Tags: 2.54mm box header with latches right angle dip, China 2.54mm box header with latches right angle dip manufacturers, suppliers, factory, 2.54mm box header
