Products Description
· Current Rating: 2A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 500V AC
· Contact Resistance: 20mΩ Max
Product Introduction
Applications
· Power systems
· IoT
· Security equipment
· Monitor
· Home appliances
· Stereo Amplifier
· LED Screen
Specifications
· Current Rating: 2A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 500V AC
· Contact Resistance: 20mΩ Max
· Operating Temperature: -40°C - +105°C
· Solderability: Reflow capable up to 260°C
Materials
· Plating: Gold flash(0.8") Standard
Higher gold available
Tin
· Contact Material: Cooper Alloy
· Housing Material: High-temperature Thermoplastic
· Environmental: UL94 V0
Others
· 2D drawing
· Contact XHS to get 3D file
· RoHS & REACH compliant
· UL compliant
Features
● Easy to replace old connectors, save more time and labor cost.
● Improve design flexibility
● Easy assembling and low production cost
● Simple and clean internal design
Advantages
● Mature R&D team
● Skilled and stable staff
● Complete product range, full pitch series
● Fast delivery time of average 4 weeks
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in shrouded male header latched box connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in shrouded male header latched box connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: How long is the product warranty time?
A: Gold plating for 1 year, tin plating for half a year.
Q: What are the packaging methods?
A: There are different packaging methods according to different products, specifically PE bags, blister boxes, blister trays, tubes and tape & reel.
Q: What are the forms of CAP for SMT products?
A: The default tape and reel packaging comes with a cap. And there are the following types of caps: mylar, plastic cap and metal cap. Some customers do not need a cap and need to be notified in advance.

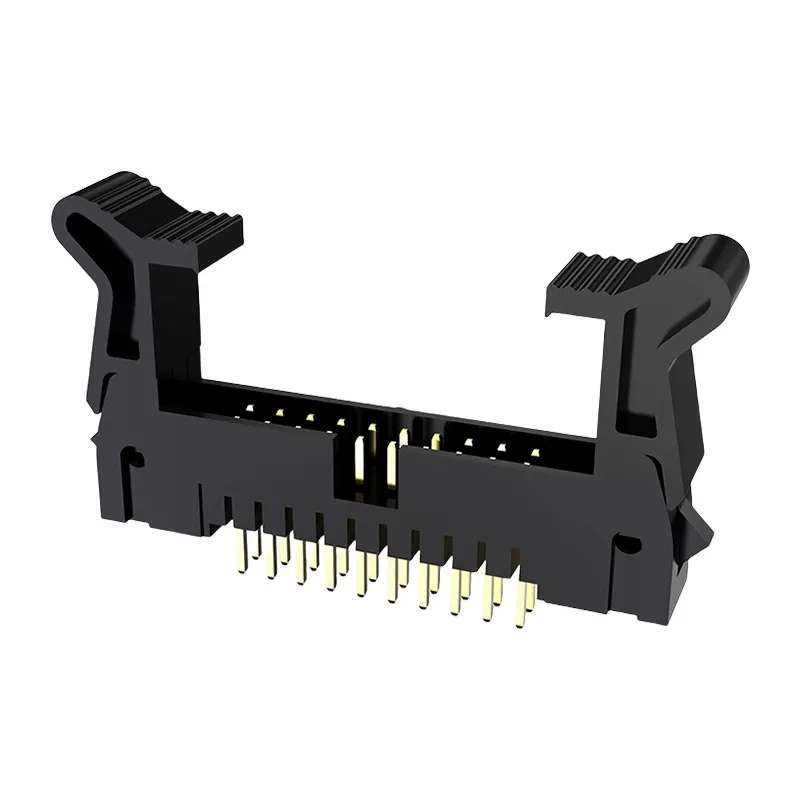

Hot Tags: 2.0mm box header with latches straight, China 2.0mm box header with latches straight manufacturers, suppliers, factory, 2 0mm box header, boxed header
