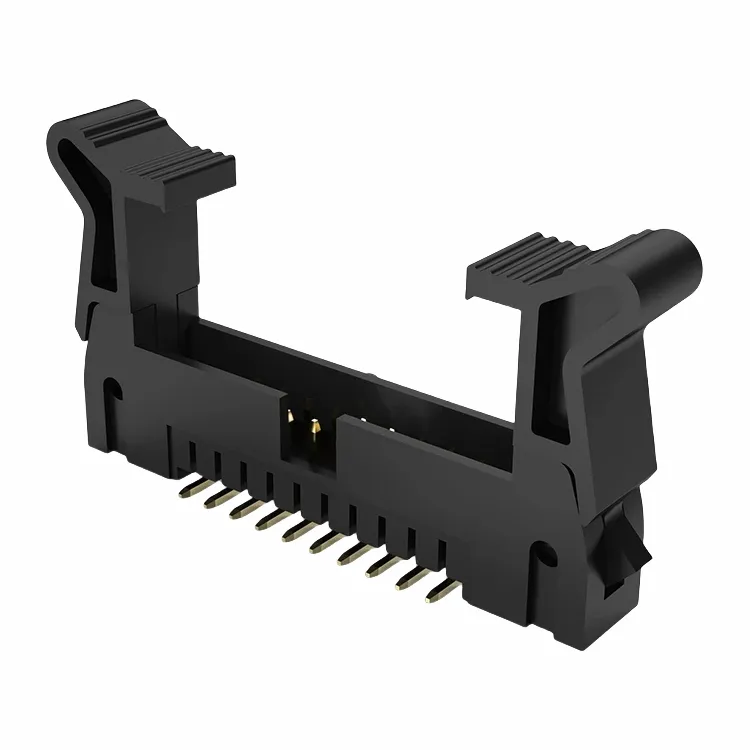

Products Description
· Current Rating: 2A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 500V AC
· Contact Resistance: 20mΩ Max
Product Introduction
Applications
· Power systems
· IoT
· Home appliances
· Servo drives
· Industrial controls
· Robotics
· LED Screen
Specifications
· Current Rating: 2A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 500V AC
· Contact Resistance: 20mΩ Max
· Operating Temperature: -40°C - +105°C
· Solderability: Reflow capable up to 260°C
Materials
· Plating: Gold flash(0.8") Standard
Higher gold available
Tin
· Contact Material: Cooper Alloy
· Housing Material: High-temperature Thermoplastic
· Environmental: UL94 V0
Others
· 2D drawing
· Contact XHS to get 3D file
· RoHS & REACH compliant
· UL compliant
Features
● Improved resistance to electromagnetic interference.
● Easier access to components.
● Can be used to connect components located in different areas or at different heights, making them ideal for use in a variety of applications.
● Standardized, making it easier to find compatible components and accessories.
Advantages
● Systematic lab testing ability
● Skilled and stable staff
● Good before-sales and after-sales service
● Mechanized production, stable quality
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in shrouded idc header long ejector smt 2mm connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in shrouded idc header long ejector smt 2mm connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: What is your pricing policy for custom products?
A: We need to collect all cost of customs products and then add some reasonable profit to finally confirm the unit price.
Q: How do you determine the contact force and retention strength of board-to-board connectors?
A: 1)Contact Force Measurement
2)Retention Strength Measurement
3)Simulation
4)In-house Testing
In summary, the contact force and retention strength of board-to-board connectors can be determined using various methods, including force measurement, retention strength measurement, simulation, and in-house testing. The choice of method will depend on the specific application and the desired level of accuracy. Ensuring that connectors are designed and tested for appropriate contact force and retention strength is crucial for achieving reliable and consistent performance in the field.
Q: What is the purpose of board-to-board connectors?
A: Some common applications of board-to-board connectors include:
Connecting modules or daughter boards to a main PCB in order to expand functionality or upgrade a system.
Connecting multiple PCBs together to form a larger system, such as in a network switch or a server.
Providing a detachable connection for easy maintenance and repair of electronic devices.
Connecting PCBs in tight spaces or difficult-to-reach areas, where traditional wiring would be impractical or impossible.
