Overview

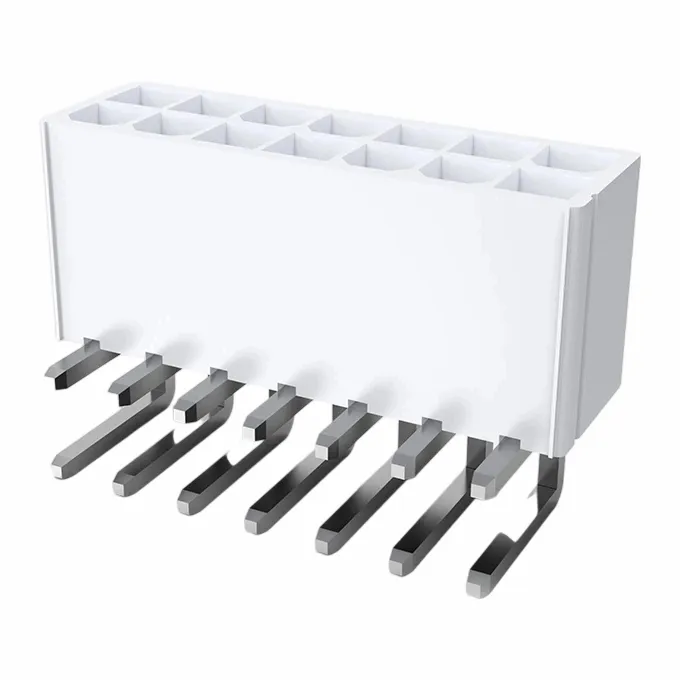

XHSConn's 4.2mm double row right angle wafer DIP wire-to-board connector is designed for harsh power environments, providing robust current and signal paths. Featuring robust copper alloy contacts and a vibration-resistant housing, it endures under challenging conditions.
Suitable for industrial machinery, power converters, automation equipment, and communication modules, it supports DIP mounting and cable access, promoting reliable interfaces. As a seasoned Chinese manufacturer, we support customized solutions to meet environmental requirements.Compared to competitors, this connector excels in high voltage withstand and interference immunity, ensuring operational continuity.
Specifications
Maximum Current: 9A
Minimum Insulation: 1000MΩ
Voltage Withstand: 1500V AC
Maximum Contact: 15mΩ
Temperature Range: -25°C to +85°C
Plating Options: Tin (Modifiable)
Contact Composition: Copper Alloy
Housing Composition: Heat-Resistant Plastic
Standard Rating: UL94 V0
Pitch: 4.2mm
Form Type: Dual-Row Right-Corner DIP
Key Highlights
• Rugged Construction: High load-bearing capacity, ideal for power-intensive areas.
• Space Saving: Compact right-corner layout for faster installation.
• Robust Protection: Vibration and temperature resistant, suitable for outdoor or industrial use.
• Affordable: Lightweight design reduces costs and burden.
• Wide Compatibility: Seamlessly connects to various systems, offering
Applications
This connector excels in mechanical control, solar equipment, and servo systems, providing robust power delivery.
View our other 4.2mm configurations, such as vertical or waterproof, to suit your needs.
Case Study: Industrial Machinery Applications
In 2025, we partnered with a heavy equipment manufacturer to supply 4.2mm dual-row right-angle DIP connectors for their CNC machine tools.
The problem was that vibration and dust during high-speed machine operation could easily cause short circuits, hindering accuracy.
Solution
Optimization with optional gold plating and seal reinforcement resulted in a stable 9A connection across a temperature range of -25°C to +85°C, a tested contact resistance of 11mΩ, and a 98% protection rate.
Benefits
After equipment deployment, downtime decreased by 21%, and output increased by 16%.
The manufacturer noted that the right-angle design streamlined the circuitry, saving 15% in assembly. This analysis demonstrates the product's strength in the machinery field, helping customers build durable systems.
Advantages
- Good materials, all materials meet RoHS, REACH certification
- Both small and large orders are acceptable
- Fast delivery time of average 4 weeks
- Professional consultancy & technical support
