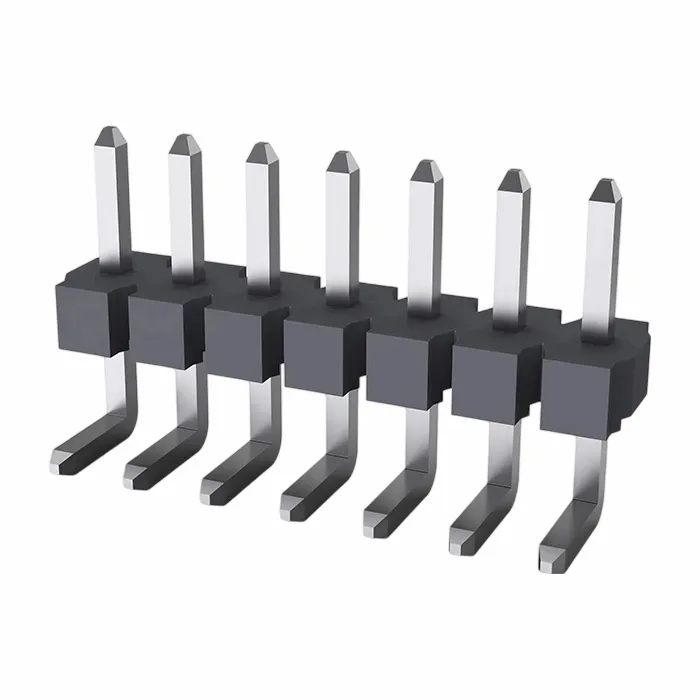

5.08mm Pin Header Single 90 Degree DIP

Product Overview

XHSConn's 5.08mm pin header is a single type with 90 degree DIP. It helps with signal and power transfer on boards. The product uses copper alloy contacts. It has high-temp plastic housing. It works for spaces in electronics. Applications include monitors, inverters, and LED screens. The connector has 90 degree for angle fit. It makes assembly easy. As a China supplier, we offer custom sizes. The product meets RoHS standards.

Our connector differs from others. It has gold or tin plating options. This reduces resistance. It suits high-speed data. We see many electronics need angle connectors. Copper alloy gives good conductivity. Plastic housing adds insulation. This setup fits modern gadgets.

• Reliable transfer: Low resistance keeps signals steady. It suits fast data needs.
• Simple install: 90 degree type saves time on boards. It cuts production steps.
• Strong protection: Housing resists heat and shakes. It works in rough spots.
• Cost saving: Light weight lowers material use. It reduces overall expense.
• Flexible fit: Easy match with current systems. We support changes for your needs.

The connector fits monitors for stable power. It works in inverters for space saving. It suits LED screens for light weight. We see questions on how to choose angle. 90 degree works for corner boards. Straight suits flat needs.

Real Industry Case: Industrial Electronics Integration

In 2026, we worked with a factory company. They used our 5.08mm pin header for control panels. The problem was heat in factories. It caused connection issues.

We optimized the connector with gold plating. This added strength. It ensured stable 5A transmission in -20°C to +80°C range. Tests showed contact resistance under 15mΩ. Heat rate was 98%.

The panel had 20% less failures after launch. Efficiency rose 15%. The company said 90 degree design saved board space. It cut assembly time by 18%. This case showed our product's role in factories. It helped the client make better panels. If you have like needs, contact us for samples or plans.

● Good materials, all materials meet RoHS, REACH certification
● Perfect quality control from materials to finished products.
● Traceability of Order and raw material
● Systematic lab testing ability
● Customized products avaiable
● Low cost and high reliability

Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in PCB connector with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in PCB connector, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
