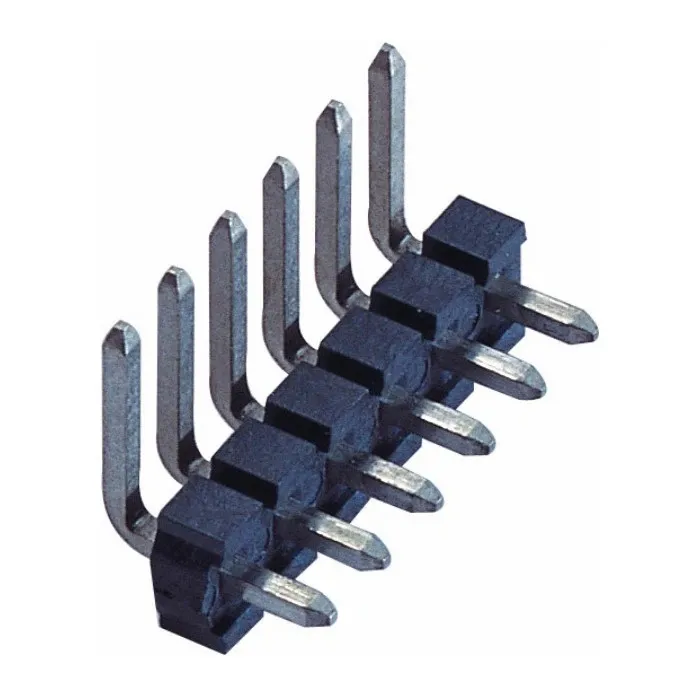

3.96mm Pin Header Single Row Right Angle DIP Type

XHSConn's 3.96mm pin header is a single row right angle DIP type. It helps with signal and power transfer on boards. The product uses copper alloy contacts. It has high-temp plastic housing. It works for spaces in electronics. Applications include monitors, inverters, and LED screens. The connector has right angle for corner fit. It makes assembly easy. As a China supplier, we offer custom sizes. The product meets RoHS standards.

Our connector differs from others. It has gold or tin plating options. This reduces resistance. It suits high-speed data. We see many electronics need angle connectors. Copper alloy gives good conductivity. Plastic housing adds insulation. This setup fits modern gadgets.

• Reliable transfer: Low resistance keeps signals steady. It suits fast data needs.
• Simple install: Right angle type saves time on boards. It cuts production steps.
• Strong protection: Housing resists heat and shakes. It works in rough spots.
• Cost saving: Light weight lowers material use. It reduces overall expense.
• Flexible fit: Easy match with current systems. We support changes for your needs.

The connector fits monitors for stable power. It works in inverters for space saving. It suits LED screens for light weight. We see questions on how to choose angle. Right angle works for corner boards. Straight suits flat needs.

Real Industry Case: Industrial Electronics Integration

In 2026, we worked with a factory company. They used our 3.96mm pin header for control panels. The problem was heat in factories. It caused connection issues.

We optimized the connector with gold plating. This added strength. It ensured stable 3A transmission in -20°C to +80°C range. Tests showed contact resistance under 15mΩ. Heat rate was 98%.

The panel had 20% less failures after launch. Efficiency rose 15%. The company said right angle design saved board space. It cut assembly time by 18%. This case showed our product's role in factories. It helped the client make better panels. If you have like needs, contact us for samples or plans.

● Free sample
● Perfect quality control from materials to finished products.
● Traceability of Order and raw material
● Systematic lab testing ability
● Various transporation method
● According to the market demand, the product is continuously developed

Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 16 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in right angle pin header female with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in right angle pin header female connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
