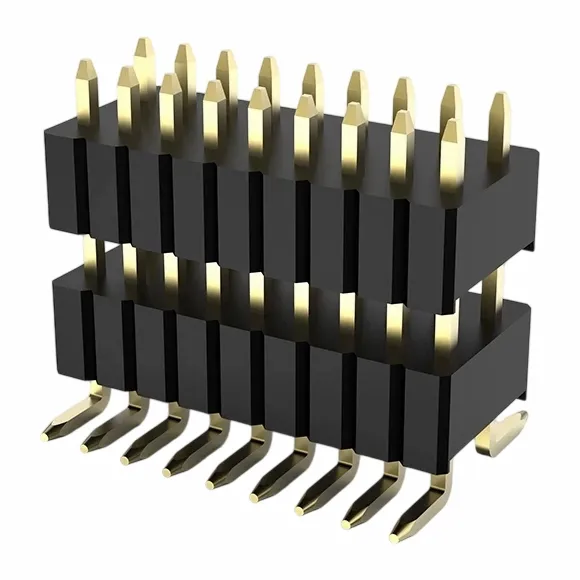

Products Introduction
This connector sets pins in twins with dual plastics. It lifts signals between boards. Contacts use metal mix. Case bears warmth. Users grab it for spaced fits. Double row adds paths. Double plastic gives support. It suits dense tools. We craft special kinds. Options include tin coat for less fade. All heed RoHS. Case has UL94 V-0. Ask us for rules in spots.
Product Specifications
|
Power Top |
1A, fits basic loads in sets |
|
Block Drag |
Above 1000M ohms, halts leaks in moist air |
|
Volt Keep |
300V to 500V AC, from normal tests |
|
Touch Drag |
Under 20m ohms, eases pass |
|
Warm Spread |
-40°C to +105°C; some hit -65°C to +125°C but scan yours |
|
Coat Sort |
Tin base; gold flash over nickel for strong hold |
|
Build Bits |
Brass contacts; UL94 V-0 plastic for burn halt |
|
Gap Width |
1.27x2.54mm pitch, double row with double plastic |
Products Traits
This connector doubles pins with plastic lifts. It suits board gaps. Double support grabs firm. Heights adjust for stacks. Shape aids right join. Ends help handle. Spaced form shrinks spot. It stands shakes in gear. We alter sums. View it as a twin spacer for flows.
Contacts use brass for pass. Case blocks fire. Safe tag stops spread. Gap is 1.27x2.54mm. Plans on need. Pin totals vary. Plastic depth like 1.5mm is standard but look yours.
Products Uses
This serves audio. Boards need it for lifts. IoT uses it in frames. Scanners gain from pair supports. Video items fit well. Monitors handle it. Security tools rely on it. Home sets use similar kinds.
Order runs smooth. Take free checks. Pass wants for own. Write ron.ye@126.com. WhatsApp +8613902450680. Or WeChat. Our spot in Shenzhen carries connector skill. We view each bit.
Features
● Good resistance to breaking
● Improved durability
● help to minimize electromagnetic interference (EMI), which can negatively impact the performance of a system.
● High reliability and durability
Advantages
● Can be used in a wide range of industries and applications, including telecommunications, automotive, industrial, and consumer electronics.
● Be used in high-vibration environments, reducing the risk of disconnection.
● Traceability of Order and raw material
● Systematic lab testing ability
● Mechanized production, stable quality
● Complete product range, full pitch series
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 16 years, adhering to the belief of quality first and customer first.we are a reliable manufacturer in 0.1 pin header connector with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in 0.1 pin header connector, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: How do you choose the right board-to-board connector for your application?
A: Choosing the right board-to-board connector for an application involves several considerations. Here are some factors to keep in mind:
Pitch: The pitch refers to the distance between the center of one contact to the center of the next contact. Make sure to select a connector with a pitch that matches the spacing of the pads on the boards.
Number of contacts: Consider the number of connections required for your application. Choose a connector that has the appropriate number of contacts.
Current rating: Ensure that the connector can handle the current required by your application.
Voltage rating: Make sure the connector can handle the voltage level of your application.
Signal integrity: If you are dealing with high-frequency signals, consider using connectors with impedance matching capabilities to maintain signal integrity.
Mounting: Consider the available space and the ease of installation. Some connectors may require surface mount technology (SMT) while others may be through-hole.
Environmental factors: Consider factors such as temperature, humidity, and vibration that could impact the connector's performance. Choose a connector that is designed to handle the environmental conditions of your application.
Cost: Finally, consider the cost of the connector and whether it fits your budget.
By carefully considering these factors, you can select a board-to-board connector that is appropriate for your application.
Q: What are the different materials used for board-to-board connectors?
A: 1)Metals: Metals are often used in board-to-board connectors due to their durability and conductivity. Copper, brass, and phosphor bronze are all common materials used for the contacts in board-to-board connectors.
2)Plastics: Plastics are commonly used in board-to-board connectors due to their light weight and versatility. PBT, nylon, and LCP are all materials that are often used for the housing or insulating components of board-to-board connectors.
