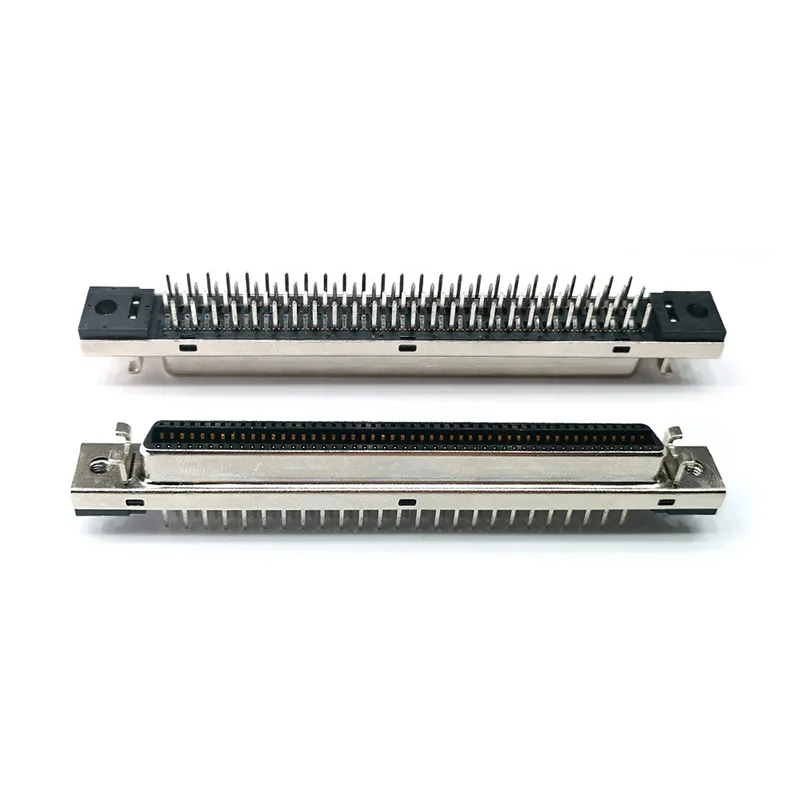

14pin 26pin 36pin 50pin PCB Vertical SCSI MDR Connector, 1.27mm pitch PCB Straight CN Type Female SCSI Connector
Quick Details
Type: Terminal Connectors, Contact Connector, SCSI Connector
Application: servo and automation devices
Interface Type: Centronics
Packaging: Tray
Supplier Type: Original manufacturer
Place of Origin: Guangdong, China
Color: Black
Material: PBT
Brand Name: PCB SCSI Connector
Number of Positions: 14pin 26pin 50pin
Pitch: 1.27mm, 1.27mm pitch connector
Number of Rows: 2
Mounting Type: PCB
Center Contact Plating: Gold plating
Connector Line: SCSI Connector
No. of Contacts: 14pin 26pin 36pin 50pin
Gender: Female Connector
Connector Type: PCB Right Angle Connector
Contact material: Phosphorous Bronze
Contact Plating: Gold plating (1u",3u",5u",10u",15u")
Insulation Color: Black
Insulation Material: PBT
Shell material: Nickel plated
Packaging & Delivery
Selling Units: Single item
Single package size: 9X2X2 cm
Single gross weight: 0.100 kg
|
SCSI 36P MALE SOLDER |
|
|
terminal: |
Copper alloy, contact area plated 5u" |
|
shell: |
SPCC, plated Ni |
|
housing: |
PBT+30%G.F.,black |
|
cover: |
PBT+30%G.F.,black |
|
Electrical characteristics: |
a) Contact Current Rating: 1 Amp |
|
b) Dielectric Withstanding Voltage:500V AC |
|
|
c) Insulation Resistance: 500MΩ/Min |
|
|
d) Contact Resistance: 35mΩ/Max |
|
|
e) Operation Temperature: -20℃～+85℃ |
|
|
Application: |
Industrial equipment, motion control card |
|
Environmental standards: |
Rohs compliant |
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in various connectors and wire harness. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. And our advantage and strength is to support the customers' unique design. And we can offer the design and engineering support for the customization.
Q: When can I get the price?
A: Usually we quote within 8 hours after we get your inquiry.
Q: What's your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer's exact situation
Q: How long is your delivery time?
A: The general delivery time is 14-21 days after receiving your order confirmation. And if we have the goods in stock, it will only take 1-2 days.
Q: Do you provide sample ? Is it free?
A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
