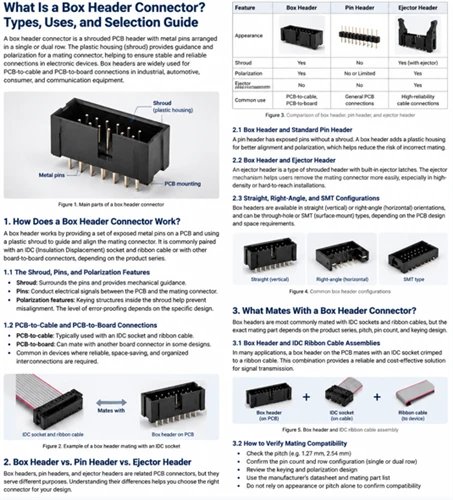

A box header connector is a PCB-mounted connector with a protective housing, or shroud, surrounding its pins. It provides a detachable electrical interface between a printed circuit board (PCB) and a compatible cable assembly or connector.
The shroud helps guide mating and, when designed with compatible polarization features, reduces the risk of incorrect insertion. Box headers are used in electronic controls, industrial equipment, and other systems that require organized, serviceable connections.
The key to selecting a box header is compatibility, not appearance. Pitch, pin arrangement, mating geometry, PCB footprint, and electrical ratings all need to match the application.
How Does a Box Header Connector Work?
Metal pins establish the electrical connection between the PCB and the mating component. The surrounding shroud guides the mating connector into position and helps protect the pins from accidental contact or mechanical damage.
The Shroud, Pins, and Polarization Features
A box header has three main elements:
- Shroud: Surrounds the pins and guides the mating component.
- Metal pins: Carry electrical signals or power between the PCB and the mating connector.
- Polarization features: Keys, slots, or notches that help orient compatible components correctly.
A shroud alone does not guarantee error-free mating. Its effectiveness depends on the geometry and polarization of both connector halves.
PCB-to-Cable and Board-to-Board Connections
Box headers are commonly used for wire-to-board connections, often with a compatible cable connector. Other designs support board-to-board applications.
The mating component depends on the connector series. An IDC socket and ribbon cable may be suitable for one design, while another header requires a dedicated mating connector.
Confirm the intended connection type before selecting a part.https://www.xhsconn.com/box-header/
Box Header vs. Pin Header vs. Ejector Header
These names describe different connector features, so they should not be treated as interchangeable terms.
| Feature | Box Header | Standard Pin Header | Ejector Header |
|---|
| Basic structure | Pins surrounded by a shroud | Exposed pins | Header incorporating an ejector mechanism |
| Mating guidance | Provided by the shroud design | Depends on the mating system | Depends on the shroud and mating design |
| Polarization | Available when designed into the interface | May be absent or limited | Depends on the specific design |
| Typical consideration | Alignment and controlled mating | Simple PCB connections | Easier disconnection where an ejector is provided |
Box Header and Standard Pin Header
A box header surrounds its pins with a housing; a standard pin header generally leaves them exposed.
The shroud can improve alignment and provide polarization. A standard pin header may be sufficient when the mating arrangement is simple and the application does not require those features.
Box Header and Ejector Header
An ejector mechanism helps disengage a compatible mating connector, which can be useful when cable assemblies need regular removal.
Not every box header includes an ejector. Check the product drawing rather than assuming the mechanism is present.
Straight, Right-Angle, and SMT Configurations
These terms describe separate design choices:
- Vertical or straight: The mating direction is generally perpendicular to the PCB.
- Right-angle: The mating direction is generally parallel to the PCB.
- Through-hole: Terminals pass through PCB holes for soldering.
- Surface-mount (SMT): Terminals are soldered to PCB surface pads.
The appropriate combination depends on board clearance, cable routing, assembly requirements, and the available product series. Manufacturer catalogs such as Samtec's shrouded header range illustrate how these options vary by series.
What Mates With a Box Header Connector?
Many box headers are paired with IDC sockets and ribbon cables. IDC, or insulation displacement connection, is a termination method in which contacts connect to conductors by displacing their insulation.
A typical assembly consists of:
- A box header mounted on the PCB.
- A compatible IDC socket.
- A ribbon cable terminated with that socket.
This is a common arrangement, not a universal rule. Some box headers are designed for other mating connectors or board-to-board connections.
How to Verify Mating Compatibility
Start with the manufacturer's specified mating parts. Then check:
- Pitch: The spacing between adjacent contacts.
- Pin count and row configuration: The number and arrangement of contacts.
- Mating geometry: Housing dimensions, polarization, and contact layout.
- Part number: Whether the exact components are listed as compatible.
- Mechanical drawing: Whether the dimensions match the intended assembly.
A matching pitch is not proof of compatibility. Two connectors can share the same contact spacing but differ in housing dimensions, polarization, or contact geometry.
If you are replacing an existing component, use its full part number and the original manufacturer's drawing as your starting point.
Key Specifications to Check Before Selection
Once the mating arrangement is established, verify the dimensions and ratings that determine whether the connector will fit and perform as required.https://www.xhsconn.com/box-header/
Pitch, Pin Count, and Row Configuration
Pitch determines contact spacing; pin count and row configuration determine the electrical connection layout.
These dimensions affect both PCB design and mating compatibility. Do not select a replacement using a product photograph alone.
Mounting Style and PCB Footprint
Through-hole and SMT versions require different PCB layouts. Vertical and right-angle versions can also have different mounting dimensions and clearance requirements.
Use the recommended footprint and mechanical drawing for the exact part number. TE Connectivity's PCB header application specification explains
why accurate hole placement and product-specific customer drawings matter for header installation.
Before releasing the PCB design, verify the hole or pad pattern, terminal dimensions, connector height, orientation, and nearby component clearance.
Electrical Ratings and Operating Conditions
Check the specified current rating, voltage rating, contact resistance, operating temperature, and mating-cycle rating where applicable.
Do not assume that ratings are interchangeable across product families. Performance depends on the contact system, termination, configuration, and operating conditions.
For high-vibration or high-speed applications, verify the relevant mechanical retention or signal-performance data for the exact series. A general product description is not a substitute for a datasheet.
Common Box Header Selection Mistakes
Three different failure risks deserve separate checks.
1. Mating Incompatibility
The problem: A connector appears to fit but has the wrong mating geometry, pin arrangement, or polarization.
The check: Confirm the manufacturer's mating-part list and exact part numbers. Do not rely on pitch or pin count alone.
2. PCB Assembly Mismatch
The problem: The connector is electrically suitable, but the footprint, mounting direction, or height does not match the board.
The check: Compare the recommended PCB layout with the product drawing before releasing the design. Check cable exit direction and service clearance as well as the solder pattern.
3. Electrical or Environmental Mismatch
The problem: The connector fits correctly but cannot meet the application's operating requirements.
The check: Verify the exact part's electrical ratings and applicable mechanical or environmental specifications. For demanding conditions, request supporting test data rather than assuming a standard box header will be suitable.
Frequently Asked Questions
What is a box header connector?
A box header is a PCB-mounted connector with a shroud surrounding its pins. It provides a detachable electrical interface with a compatible cable assembly or connector.https://www.xhsconn.com/box-header/
What is the difference between a box header and a pin header?
A box header has a surrounding housing that can guide mating and provide polarization. A standard pin header generally has exposed pins.
What is the difference between a box header and an ejector header?
A box header describes the shrouded structure. An ejector header incorporates a mechanism to help remove the mating connector. Specific designs may combine these features.
Does a box header use an IDC connector?
Many box headers mate with IDC sockets and ribbon cables, but the correct mating component depends on the connector series and its specified interface.
How do I choose the correct pitch and pin count?
Determine the required connections and mating component first. Then verify pitch, pin count, row arrangement, and mechanical dimensions against the manufacturer's documentation.
Are box headers available in right-angle and SMT versions?
Many product families offer different orientations and termination styles, but availability depends on the specific series. Check the manufacturer's catalog and drawing.
Can box headers be used in high-vibration applications?
Suitability depends on retention features, mounting, cable support, and the actual vibration conditions. Verify relevant test data and mechanical specifications for the chosen product.
How do I verify a box header's PCB footprint?
Use the manufacturer's recommended PCB layout for the exact part number. Confirm the hole or pad pattern, dimensions, orientation, and required clearance before finalizing the board.
Find the Right Box Header for Your PCB
Start with the intended connection and its mating component. Then verify the mechanical interface, PCB footprint, and electrical ratings against the manufacturer's documentation.
Explore our Box Header Connectors to compare available configurations and product specifications.
Need help identifying a compatible mating connector? Contact our team with your existing part number, PCB drawing, or cable assembly requirements to discuss suitable product options.https://www.xhsconn.com/box-header/
