Products description

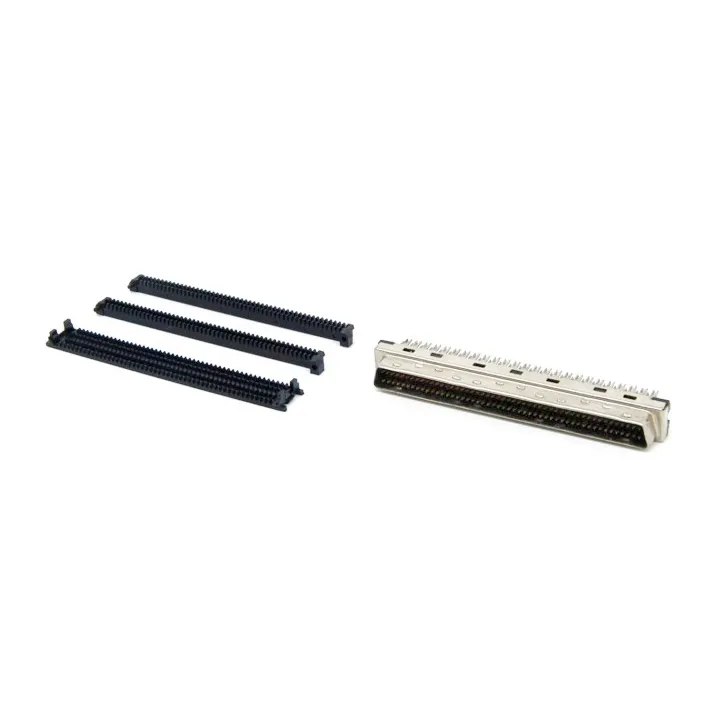

This connector creates a firm route for data between cables and equipment. Its metal cover shields from grime in lively workspaces. The 100-pin male layout works with straight solder joins, making it handy for input/output roles in machines or networks. In plant floors, where wires handle regular stress, such builds sustain steady operation through many connections. We supply varied lengths to suit your setup, aiding seamless blending. The nickel layer lessens noise, backing clear exchanges in busy tasks. All items follow RoHS guidelines for harmless parts, The housing's UL94 V-0 boosts safety,with REACH as an option for some zones-confirm for your group.
Products Specification
|
Current Capacity |
Up to 1A max, fitting signal demands in encoders or hubs |
|
Insulation Shield |
At least 500MΩ, blocking leaks in wet areas |
|
Voltage Strength |
500V AC, from usual safety exams |
|
Contact Drop |
No more than 35mΩ, keeping flow efficient |
|
Heat Range |
From -20°C to +85°C; some tolerate wider but check yours |
|
Layer |
Nickel base; gold flash available for added strength-verify thickness like 1-3μ" for your lot |
|
Makeup |
Phosphor bronze terminals for bounce; PBT housing rated UL94 V-0 to curb flames |
|
Arrangement |
1.27mm spacing, single port for exact fits |
Products Traits
The metal shell wards off dust, an edge in grimy shops where exposed pieces degrade quicker. Screw locks grip against jolts, typical in network rooms to stop slips during shifts. Easy solder points quicken putting together, trimming expenses in big lots. The black case merges with systems, and we tweak pin setups for your tasks-see it as a versatile item in build plans. Light build eases carrying, spotted in PLC fittings where heft slows jobs.
Terminals draw on phosphor bronze for good give, combined with a PBT case that withstands warmth-rated UL94 V-0 to limit fire hazards if troubles hit. The 1.27mm layout allows packed designs, yet sketches are ready on ask for spot-on matches; pin changes meet frequent custom calls in control systems.
Products uses
Connectors like this thrive in networks for steady data streams, or servers with cramped space. Factory tools profit from the strong cover, and encoders count on trustworthy signals amid clutter. In car panels or communication centers, it functions as a key spot for power or separates paths when called for. We've spotted it in PLC units too, easing oversight without extra bits.
Ordering flows easy: Seek free tests to gauge match. Custom jobs are direct-just send info. Touch ron.ye@126.com, WhatsApp +8613902450680, or WeChat. Our Shenzhen group, skilled in connectors, scans from base parts to close checks for evenness.
