Products Introduction
This connector provides a secure spot for pins on circuit boards. Shaped with a plastic frame, it stays firm in tight stacks. The single row straight style clasps male pins for reliable bonds, useful for signal paths in smaller devices or controls. In production lines, where boards manage layers and speed, such anchors sustain grips through repeated joins. We supply modified heights to suit your design, helping easy placement. The tin finish reduces corrosion, aiding crisp transfers in routine tasks. All elements follow RoHS guidelines for safe parts, The housing's UL94 V-0 boosts safety, with REACH as a choice for select markets-confirm for your group.

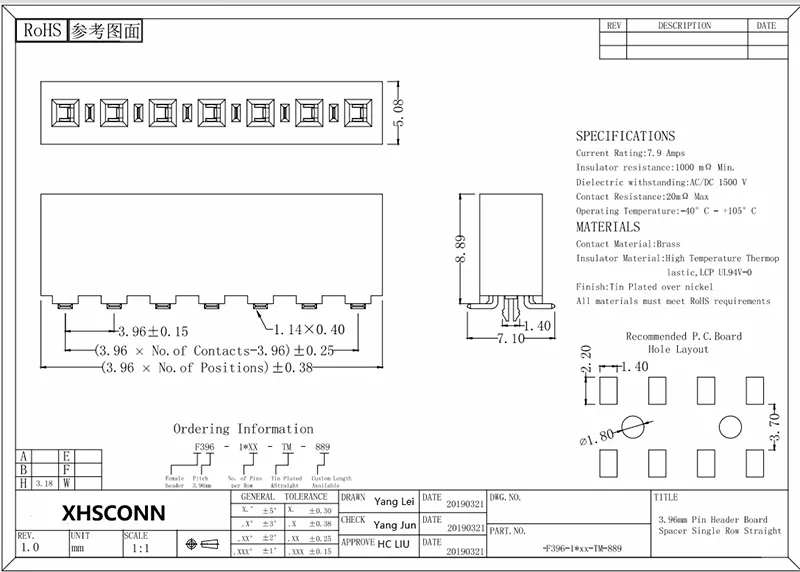

Product Specifications
|
Current Load |
Up to 5A to 7A maximum, matching moderate streams in sensors or hubs |
|
Insulation Barrier |
At least 1000MΩ, blocking leaks in damp places |
|
Voltage Strength |
250V to 1000V AC, from routine safety trials |
|
Contact Fall |
No more than 20mΩ to 30mΩ, keeping flow efficient |
|
Heat Scope |
From -40°C to +105°C; some endure broader but examine yours |
|
Surface |
Tin base; gold flash available for added toughness-verify depth like 1-3μ" for your batch |
|
Makeup |
Brass terminals for flow; high-temperature plastic housing rated UL94 V-0 to curb flames |
|
Setup |
3.96mm spacing, single row for sharp matches |
Products Traits
The plastic frame shields well, a plus in layered circuits where shorts pose threats. Openings clutch pins tight, usual in test projects to stop slips amid motion. Simple surface mount hastens assembly, dropping outlays in small lots. The black case merges with boards, and we tweak setups for your tasks-regard it as a versatile foundation in plan puzzles. Light makeup eases fitting, noted in module installs where weight affects pace.
Terminals tap brass for solid flow, joined with a plastic case that withstands warmth-rated UL94 V-0 to limit fire dangers if troubles occur. The 3.96mm layout lets packed plans, yet sketches are ready on ask for dead-on matches; height shifts meet regular custom asks in development systems.
Products uses
Anchors like this prosper in sensors for steady clasps, or modules with squeezed room. Test boards gain from the firm grip, and prototype arrangements count on trustworthy holds amid experiments. In vehicle panels or smart cores, it works as a vital point for signals or divides routes when called for. We've spotted it in embedded systems too, easing growth without extra props.
Ordering flows easy: Seek free tests to gauge match. Custom jobs are direct-just send info. Link ron.ye@126.com, WhatsApp +8613902450680, or WeChat. Our Shenzhen group, skilled in connectors, scans from base parts to close checks for evenness.
Advantages
● Mature R&D team
● Skilled and stable staff
● Complete product range, full pitch series
● Professional consultancy & technical support
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in female header connector for amplifier connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in female header connector for amplifier connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: What certifications does the product have?
A: ROHS, REACH, UL, MSDS, HF.
Q: How long is the product warranty time?
A: Gold plating for 1 year, tin plating for half a year.
Q: What are the storage requirements?
A: Temperature: 5℃-30℃ and Humidity: ≤65%.
