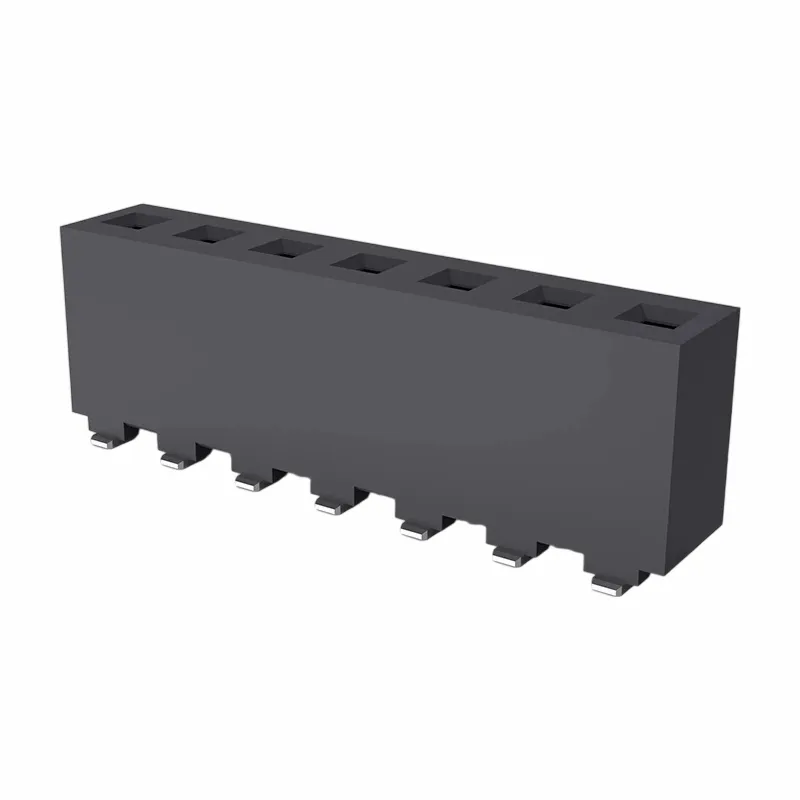

Products Description
· Current Rating: 7.9A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 1500V AC
· Contact Resistance: 20mΩ Max
Product Introduction
Applications
· Communication networks
· Elevators
· Robotics
· Industrial automation
· Medical equipment
· Office equipment
· Power systems
· Robotics
Specifications
· Current Rating: 7.9A Max
· Insulation Resistance: 1000MΩ Min
· Dielectric Withstanding: 1500V AC
· Contact Resistance: 20mΩ Max
· Operating Temperature: -40°C - +105°C
· Solderability: Reflow capable up to 260°C
Materials
· Plating: Tin--Standard
Gold
· Contact Material: Cooper Alloy
· Housing Material: High-temperature Thermoplastic
· Environmental: UL94 V0
Others
· 2D drawing
· Contact h XHS to get 3D file
· RoHS & REACH compliant
· UL compliant
Features
● Provide a clean, organized look, reducing clutter and improving the overall appearance of a system.
● Enables efficient signal transmission
● Provides electrical insulation
● Enhances the accuracy and precision of the connection
Advantages
● Good before-sales and after-sales service
● Mechanized production, stable quality
● Customized products avaiable
● Low cost and high reliability
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in female header for meter connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in female header for meter connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: Do you offer any discounts for bulk orders?
A: Yes, if customer place bulk orders, we'll provide some discount.
Q: How do you test and verify the quality of board-to-board connectors?
A: 1)Visual inspection: The first step is to visually inspect the connectors for any physical defects, such as cracks or missing pins.
2)Mechanical testing: The connectors should be tested for their mechanical performance, including the number of mating cycles they can withstand, the force required to mate and unmate them, and their resistance to vibration and shock.
3)Electrical testing: Electrical testing is also important to verify the quality of the connectors. This may include testing for continuity, insulation resistance, and capacitance.
4)Environmental testing: The connectors should be tested for their resistance to various environmental conditions, such as temperature, humidity, and exposure to chemicals.
5)Signal integrity testing: In addition to electrical testing, signal integrity testing may be necessary to ensure that the connectors are not introducing noise or distortion into the signal.
6)Compatibility testing: Finally, the connectors should be tested for compatibility with the devices they will be used with. This may include testing with various types of PCBs and cables, as well as with different types of devices.
Q: What is the role of connectors in power and signal transmission?
A: Connectors play a crucial role in both power and signal transmission by providing a physical and electrical interface between two devices or components. They are used to connect wires or cables to a device or between devices, and can be used for power, data, or signal transmission.
In power transmission, connectors are used to ensure a secure and reliable connection between power sources and loads. They can carry high currents and voltages, and are designed to withstand harsh environmental conditions such as high temperature, moisture, and vibration. Connectors for power transmission can come in a variety of shapes and sizes, ranging from small, low-power connectors used in consumer electronics to large, high-power connectors used in industrial and utility applications.
In signal transmission, connectors are used to transfer data and information between devices or components. They can carry low voltage signals with high data rates, and are designed to provide a low-loss, noise-free connection. Connectors for signal transmission can include audio connectors, video connectors, Ethernet connectors, USB connectors, and others.
