Product Introduction
This 2.0mm single-row straight-through wafer connector features 2A current carrying capacity, low contact resistance, a compact single-row design, wide temperature range, UL94 V0/RoHS compliance, easy wave soldering with its straight-through design, batch consistency, and high cost-effectiveness. It emphasizes space saving, simplified assembly, and stable signal transmission. Suitable for home appliance and LED applications. Compared to international brands, it significantly reduces procurement costs and lead times while maintaining electrical performance, helping procurement teams optimize the supply chain. It is an economical alternative to international brands such as JST PH 2.0mm.
Specifications
| Current Rating | 2A Max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Withstanding | 800V AC |
| Contact Resistance | 20mΩ Max |
| Operating Temperature | -25°C - +85°C |
| Plating | Tin--Standard |
| Contact Material | Copper Alloy |
| Housing Material | High-temperature Thermoplastic |
| Environmental | UL94 V0 |
Others

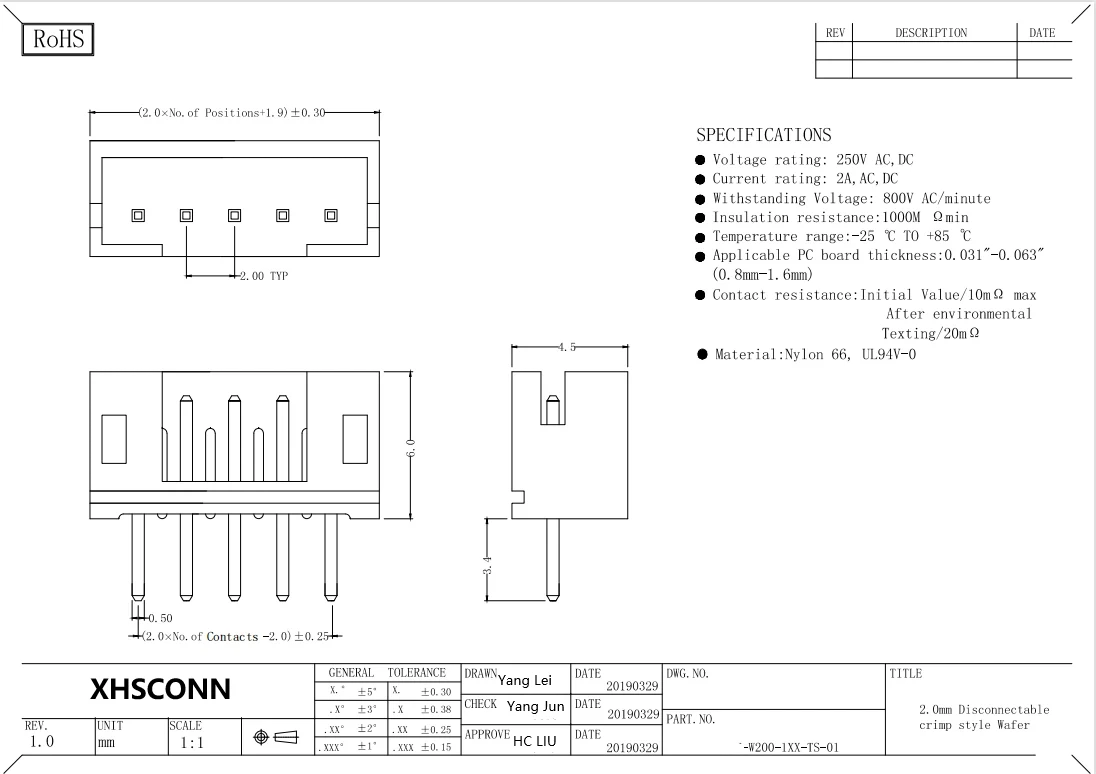

· 2D drawing
Advantages
1. Compact Straight DIP Configuration
The 2.0mm single-row straight wafer connector features a vertical mounting design with tin-plated copper alloy contacts and high-temperature plastic housing. this configuration simplifies wave soldering processes and standardizes PCB integration. It helps reduce assembly labor and tooling costs, shortens production cycles, lowers material expenses, and improves manufacturing efficiency while supporting reliable performance in consumer electronics and office equipment.
2. Regulatory Compliance and Material Standards
Manufactured to UL94 V0 flammability rating and fully RoHS compliant, this connector meets essential industry requirements. benefit from streamlined supplier qualification, reduced compliance risks, faster project certifications, and minimized potential regulatory delays or costly rework when sourcing for multiple domestic and export markets.
3. Stable Electrical Performance
With 2A current rating, 20mΩ maximum contact resistance, and reliable insulation across -25°C to +85°C, the connector ensures consistent power and signal transmission. lower field failure risks, reduce warranty claims, and enhance long-term project stability for OEM customers.
4. Consistent Quality from Automated Manufacturing
Advanced mechanized production processes deliver excellent batch-to-batch uniformity and traceability. Procurement teams gain from predictable component quality, simplified incoming inspection, fewer defects, and reduced total procurement costs while maintaining reliable volume production schedules.
5. Flexible Supply Chain Support
As a specialized manufacturer, we provide responsive lead times and flexible ordering options for this 2.0mm straight wafer connector. This enables to optimize inventory levels, simplify sourcing strategies, minimize supply risks, accelerate project timelines, and achieve better cost control without compromising performance.
Application Scenario
1: Consumer Electronics and Office Equipment Manufacturing
Our 2.0mm single-row straight wafer connector, featuring tin-plated copper alloy contacts, high-temperature plastic housing, 2A current rating, and UL94 V0 & RoHS compliance, delivers consistent electrical performance in a space-saving design. By selecting this component, procurement teams benefit from predictable batch quality through mechanized production, competitive pricing, and responsive lead times. This results in reduced material and assembly costs, simplified supply chain management, lower defect rates, and improved production efficiency, ultimately enhancing project profitability and on-time delivery for office and consumer electronics lines.
2: Industrial Control and Robotics Systems
This 2.0mm single-row straight wafer connector offers stable power transmission with low contact resistance and straightforward wave soldering compatibility. Its compact structure and industry-standard compliance streamline manufacturing processes. The outcome is simplified sourcing, minimized incoming inspection efforts, reduced supply risks, and stronger project stability - contributing to lower total ownership costs and faster time-to-market for industrial automation equipment.
3: Medical Equipment and Servo Drive Applications
Our 2.0mm single-row straight wafer connector provides dependable electrical characteristics and mechanical stability in a cost-effective package. Its straight DIP design facilitates efficient wave soldering and easy integration. By adopting this connector, teams achieve reduced procurement complexity, lower warranty exposure, minimized compliance risks, and enhanced supply chain resilience - delivering measurable value through improved project margins and reliable product performance.
After-sales, Warranty, and Return/Exchange Feedback
XHS actively provides technical support, sample testing, factory audits, traceability, and rapid response.
- Standard tin-plated models for consumer electronics/LEDs/home appliances have a 12-month warranty, calculated from the date of customer receipt; gold-plated thickened models and industrial control improved models have an extended warranty of 18 months; customized automotive IATF16949 models have a 24-month warranty.
- 24/7 technical after-sales support; customer complaints about failures will be responded to within 24 hours, and a complete FA failure analysis report will be issued within 3 working days;
- Improved samples, PCB adaptation drawings, and soldering process specifications are provided free of charge during the warranty period;
- For large-volume, long-term cooperative customers, backup safety stock can be reserved, and priority will be given to reshipping products without interrupting production in case of quality issues;
- Each batch of goods is accompanied by a factory inspection report, and the entire product batch is traceable for easy after-sales verification.
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in low profile wire to board connector with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in low profile wire to board connector, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: The 800V AC withstand voltage is a test condition. What is the safe voltage for long-term use?
A: The recommended rated operating voltage for the entire unit is ≤250V AC. 800V AC is the withstand voltage breakdown test value after 1 minute and is only for safety testing. It should not be subjected to high voltage for extended periods.
Q: Is this wafer fully compatible with the JST PH2.0 series? Can it be directly replaced?
A: The electrical parameters, PCB pad dimensions, and mating structure are universally compatible with the JST PH2.0 standard. It can be directly used as a replacement without PCB modification. The housing tolerance is ±0.05mm, and the male and female connectors fit smoothly. It is a cost-effective alternative, significantly reducing procurement costs and delivery time.
Q: How many pins does it support? Can the minimum/maximum pin count be customized?
A: Standard stock sizes are 2-12 pins; custom sizes of 1-24 pins per row are available. We support custom molds for special pin positions, positioning and anti-foolproof designs, and heightened housings.
Q: Is there sufficient production capacity for large-volume orders? What is the delivery cycle?
A: We have our own automated production lines, ensuring sufficient production capacity for large-volume orders. We schedule production after receiving orders and maintain a constant safety stock of raw materials. Customers can provide demand forecasts in advance to allow us to prepare materials ahead of time and shorten delivery. Regular spot goods are delivered in 3-7 days, and customized items in 10-15 days.
