Products Introduction

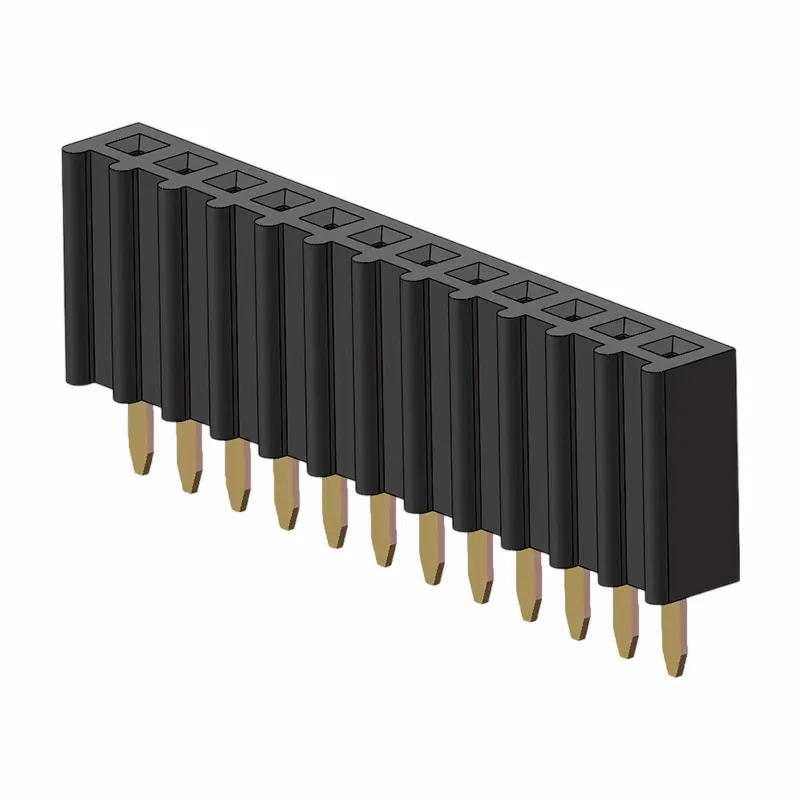

This connector forms a dependable holder for pins on circuit boards. Built with a plastic frame, it remains steady in layered stacks. The single row straight style clasps male pins for solid attachments, practical for signal paths in smaller tools or units. In production settings, where boards manage layers and speed, such receivers sustain bonds through repeated cycles. We supply modified heights to fit your layout, aiding effortless placement. The tin layer trims decay, supporting sharp exchanges in daily runs. All pieces meet RoHS standards for safe elements, The housing's UL94 V-0 boosts safety,with REACH as an option for some markets-confirm for your group.
Product Specifications
|
Current Load |
Up to 3A maximum, matching moderate streams in sensors or hubs |
|
Insulation Barrier |
At least 1000MΩ, blocking leaks in damp places |
|
Voltage Strength |
500V AC, from routine safety trials |
|
Contact Fall |
No more than 20mΩ, keeping flow efficient |
|
Heat Scope |
From -40°C to +105°C; some endure broader but examine yours |
|
Surface |
Tin base; gold flash available for added toughness-verify depth like 1-3μ" for your batch |
|
Makeup |
Copper alloy terminals for flow; high-temperature plastic housing rated UL94 V-0 to curb flames |
|
Setup |
2.54mm spacing, single row for sharp matches |
Products Traits
The plastic frame shields well, a plus in layered circuits where shorts pose threats. Openings clutch pins tight, usual in test projects to stop slips amid motion. Simple surface mount hastens assembly, dropping outlays in small lots. The black case merges with boards, and we tweak setups for your tasks-regard it as a versatile foundation in plan puzzles. Light makeup eases fitting, noted in module installs where weight affects pace.
Terminals tap copper alloy for solid flow, joined with a plastic case that withstands warmth-rated UL94 V-0 to limit fire dangers if troubles occur. The 2.54mm layout lets packed plans, yet sketches are ready on ask for dead-on matches; height shifts meet regular custom asks in development systems.
Products uses
Receivers like this prosper in sensors for steady clasps, or modules with squeezed room. Test boards gain from the firm grip, and prototype arrangements count on trustworthy holds amid experiments. In vehicle panels or smart cores, it works as a vital point for signals or divides routes when called for. We've spotted it in embedded systems too, easing growth without extra props.
Ordering flows easy: Seek free tests to gauge match. Custom jobs are direct-just send info. Link ron.ye@126.com, WhatsApp +8613902450680, or WeChat. Our Shenzhen group, skilled in connectors, scans from base parts to close checks for evenness.
Features
● More convenient to replace and upgrade connectors
● Easy to replace old connectors, save more time and labor cost.
● Light weight and flexible.
● Reduct the production cost
Advantages
● Mature R&D team
● Skilled and stable staff
● Complete product range, full pitch series
● Integrated production and assembly pocess can save your time to market and increase your profit.
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in 2.54 mm female header connector with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in 2.54 mm female header connector, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: Can you provide free samples?
A: We can provide you about 20 samples for free, but the freight is at your own expense.
Q: How to buy your products?
A: Please contact our company's sales staff directly to confirm the demand and make a purchase. We'll happily look after all your requirements.
Q: How is the quality of your connectors?
A: The company has established a high-standard quality supervision system, and has passed the IATF16949 quality management system certification of the automotive industry and the ISO-9001:2008 quality system management system. Products from raw materials to final products will go through IQC, FAI, IPQC, OQC several times to ensure product quality. All raw materials are also certified by ROHS, REACH and UL.
