Products Description

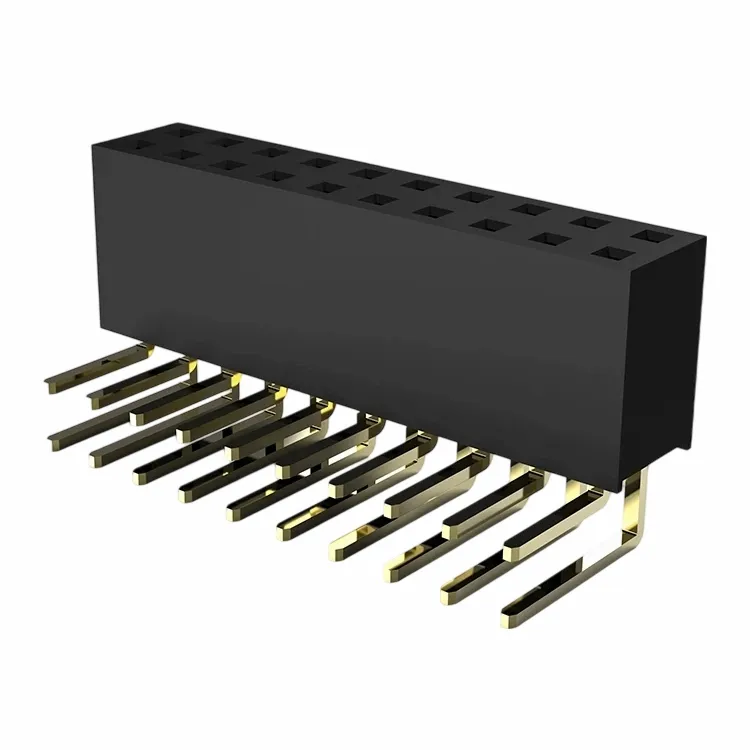

This connector forms a dependable holder for pins on circuit boards. Built with a plastic frame, it remains steady in layered stacks. The double row right angle style clasps male pins for solid attachments, practical for signal paths in smaller tools or units. In production settings, where boards manage layers and speed, such receivers sustain bonds through repeated cycles. We supply modified heights to fit your layout, aiding effortless placement. The tin layer trims decay, supporting sharp exchanges in daily runs. All pieces meet RoHS standards for safe elements, The housing's UL94 V-0 boosts safety,with REACH as an option for some markets-confirm for your group.
Product Specifications
|
Current Load |
Up to 3A maximum, matching moderate streams in sensors or hubs |
|
Insulation Barrier |
At least 1000MΩ, blocking leaks in damp places |
|
Voltage Strength |
500V AC, from routine safety trials |
|
Contact Fall |
No more than 20mΩ, keeping flow efficient |
|
Heat Scope |
From-40°C to +105°C; some endure broader but examine yours |
|
Surface |
Tin base; gold flash available for added toughness-verify depth like 1-3μ" for your batch |
|
Makeup |
Copper alloy terminals for flow; high-temperature plastic housing rated UL94 V-0 to curb flames |
|
Setup |
2.54mm spacing, double row right angle for sharp matches |
Products Traits
The plastic frame shields well, a plus in layered circuits where shorts pose threats. Angled openings clutch pins tight, usual in test projects to stop slips amid motion. Simple surface mount hastens assembly, dropping outlays in small lots. The black case merges with boards, and we tweak setups for your tasks-regard it as a versatile foundation in plan puzzles. Light makeup eases fitting, noted in module installs where weight affects pace.
Terminals tap copper alloy for solid flow, joined with a plastic case that withstands warmth-rated UL94 V-0 to limit fire dangers if troubles occur. The 2.54mm layout lets packed plans, yet sketches are ready on ask for dead-on matches; height shifts meet regular custom asks in development systems.
Products uses
Receivers like this prosper in sensors for steady clasps, or modules with squeezed room. Test boards gain from the firm grip, and prototype arrangements count on trustworthy holds amid experiments. In vehicle panels or smart cores, it works as a vital point for signals or divides routes when called for. We've spotted it in embedded systems too, easing growth without extra props.
Ordering flows easy: Seek free tests to gauge match. Custom jobs are direct-just send info. Link ron.ye@126.com, WhatsApp +8613902450680, or WeChat. Our Shenzhen group, skilled in connectors, scans from base parts to close checks for evenness.
Others
· 2D drawing
Advantages
● Perfect quality control from materials to finished products.
● Traceability of Order and raw material
● Mechanized production, stable quality
● Various transporation method
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS)has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in long female header connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in long female header connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: What is the role of shielding in board-to-board connectors?
A: Shielding in board-to-board connectors plays an important role in reducing electromagnetic interference (EMI) and ensuring signal integrity.
When electronic devices communicate with each other through board-to-board connectors, there is always a chance of unwanted electrical noise being introduced into the system. This noise can come from a variety of sources, including external electromagnetic fields, crosstalk between signals on adjacent traces, and ground loops caused by different parts of the system being at different electrical potentials.
Q: What are the different types of board-to-board connector systems available?
A: 1)Board-to-board stacking connectors: These connectors are designed to connect two PCBs together in a stacked configuration. They typically have a low profile and are designed to provide a reliable, high-speed connection.
2)Board-to-board mezzanine connectors: These connectors are similar to stacking connectors, but are typically used to connect two PCBs in a parallel configuration, with one PCB mounted on top of the other. They are commonly used in high-density applications where space is limited.
Q: Are all your parts listed online?
A: No, our items are too many, not all of items are listed online. If you can't find the part you need, send us photos of it to our website or complete the connector request form.
