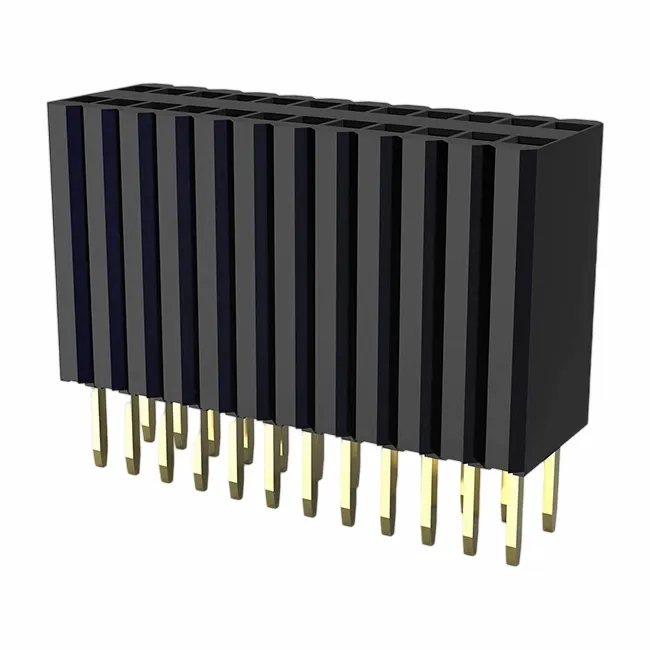

1.27x2.54mm Female Header Single Row DIP

This socket receives male pins from the top. It is mounted via DIP holes in the PCB. The contacts are made of copper alloy. The housing withstands soldering temperatures. It is suitable for boards requiring strong mechanical fixation. The single row with 1.27x2.54mm spacing enables reliable connections in confined spaces. DIP through-hole mounting provides extremely strong adhesion. It is particularly suitable for prototyping, module mounting, or applications requiring vibration resistance. We supply custom pin counts. The plating is primarily gold-plated, with tin or higher gold plating options available. All products are RoHS compliant.

 This socket provides strong mechanical fixation. The DIP through-hole design ensures the socket is firmly secured to the board, preventing loosening. It is suitable for testing environments with repeated plugging and unplugging. The narrow-pitch design helps engineers route more signal lines in small spaces. The housing guides accurate pin alignment. It withstands vibration and the pulling forces of daily use. Flexible pin counts, from 1 to 50 pins. Consider it a reliable single-row through-hole fixed socket.

The contacts are made of copper alloy for excellent conductivity. The housing is solder-resistant and has a UL94 V-0 flame retardant rating. The spacing is fixed at 1.27 x 2.54 mm. 2D drawings are available upon request; 3D files are available upon request. Typical height is approximately 4.6 mm to 8.5 mm, but can be adjusted as needed-please confirm your specific requirements. Tail length can be matched to different board thicknesses

This socket is commonly used in prototyping and testing equipment. It connects medical testing modules. Industrial control boards require this type of robust mounting. Building automation systems use it to secure sensors. Single-row DIP female connectors are also frequently used in material handling equipment and robotic test platforms.

Ordering: Request a free sample to test the mounting effect. Share your pin count and height requirements, and we can quickly customize.Contact Information:13902450680.Email: ron.ye@126.com.WhatsApp: +8613902450680.WeChat: Search and add directly.
Shenzhen Xuhuasheng Technology Co., Ltd. has many years of experience in connector manufacturing. We conduct rigorous inspections on every batch of products.

Others

· 2D drawing

· Contact XHS to get 3D file

· RoHS & REACH compliant

· UL compliant

● Perfect quality control from materials to finished products.
● Traceability of Order and raw material
● Systematic lab testing ability
● Mature R&D team

Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in stackable header pins connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in stackable header pins connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHST will be your best business partner!
