Products Description

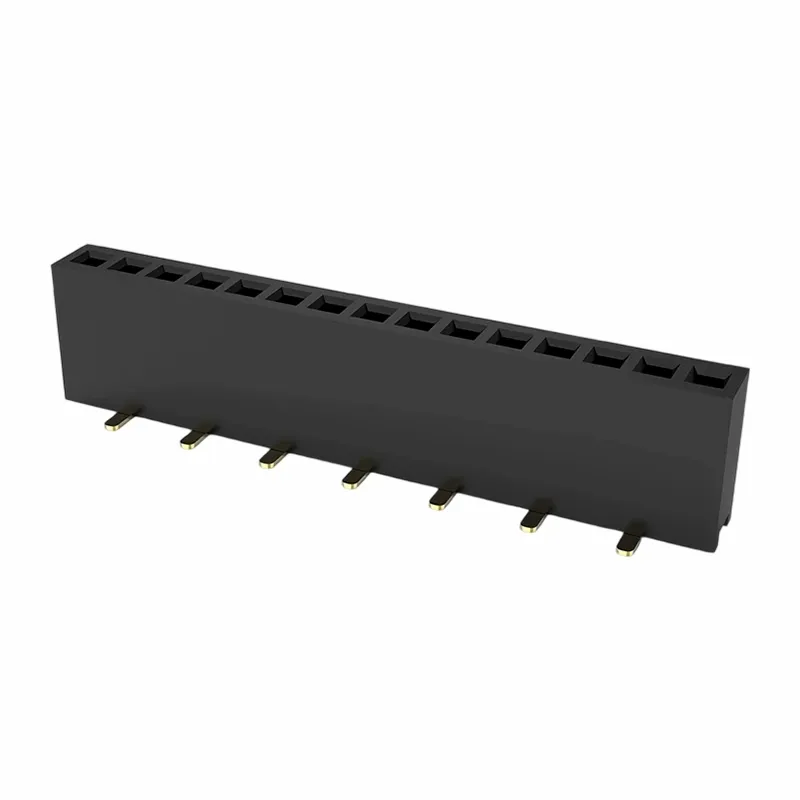

This socket receives male pins from above. It mounts directly to the PCB surface, eliminating the need for drilling. The contacts are made of copper alloy. The housing withstands reflow soldering temperatures. It is designed for boards with extremely limited space. The single-row 1.27mm pitch minimizes the footprint. This SMT mounting method is ideal for high-speed automated production lines. It is particularly suitable for portable devices, small modules, or applications requiring ultra-thin profiles. We supply custom pin counts. The plating is primarily gold-plated, with tin or higher gold plating options available. All products are RoHS compliant.
Product Specifications
| Current Rating | 1A Max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Withstanding | 300V AC |
| Contact Resistance | 20mΩ Max |
| Operating Temperature | -40°C - +105°C |
| Solderability | Reflow capable up to 260°C |
|
Plating |
Gold flash(0.8") Standard Higher gold available Tin |
| Contact Material | Cooper Alloy |
| Housing Material | High-temperature Thermoplastic |
| Environmental | UL94 V0 |
Products Features
This socket has an extremely low height, significantly reducing finished product thickness. It supports high-speed automated placement, reducing production time and costs. It provides excellent signal isolation, reducing interference between adjacent pins. The single-row narrow pitch allows engineers to arrange necessary connections in minimal space. The housing design facilitates precise placement positioning. It withstands the daily vibrations and shocks of portable devices. Think of it as a single-row surface mount socket optimized for ultra-thin designs.
Contacts are made of copper alloy for excellent conductivity. The housing is reflow resistant and UL94 V-0 flame retardant rated. Spacing is fixed at 1.27mm. Request 2D drawings; 3D files are available upon request. Height can be made very low as needed-please confirm your specific requirements. Surface mount pad layout matches standard SMT processes.
Products Applications
This socket is commonly used in portable medical instruments. It connects small consumer electronics products. Wireless communication modules and drone control boards require this ultra-compact layout. Industrial sensors and wearable devices use it to optimize space. Test fixtures or thin motherboards are also suitable for single-row SMT mounting.
Ordering: Request free samples to test the mounting and height performance. Share your pin count and height requirements, and we can quickly customize. Contact: +8613902450680 Email: ron.ye@126.com WhatsApp: +8613902450680 WeChat: Search and add directly. Shenzhen Xuhuasheng Technology Co., Ltd. has many years of experience in connector manufacturing. We conduct rigorous inspections on every batch of products.
Others
· 2D drawing
Advantages
● Improved system support
● Improved system interoperability
● Widely available and easy to purchase.
● Provide a secure and stable connection, reducing the risk of disconnection.
Shenzhen Xuhuasheng Technology Co., Ltd.(XHS) has been devoted to the production and sale of electronic connectors for 10 years, adhering to the belief of quality first and customer first. We are a reliable manufacturer in arduino female pins connectors with high quality and best price. We focus on providing high value products to our customers including male header, female header, box header, wafer, FPC, RJ and wiring harness. Any demand in arduino female pins connectors, welcome you to contact us. Just call or send email to us to get professional support, believe that XHS will be your best business partner!
Packaging and Shipping
Inspection Equipment
Our Certificate
Q＆A
Q: What are the benefits of using board-to-board connectors?
A: Reliable connection: Board-to-board connectors provide a secure and reliable connection between two circuit boards. They are designed to maintain a consistent connection even in harsh operating conditions such as high temperatures, vibration, and shock.
Easy assembly: Board-to-board connectors are easy to assemble, which can save time during manufacturing. They are available in various types, such as through-hole or surface-mount, which can be chosen according to the specific assembly process requirements.
Q: What are the most common applications for board-to-board connectors?
A: Board to board connectors could be used in products which contain electronics, like consumer electronics, industrial equipment, automotive, medical devices, aerospace, defense, electronic meters, PCBA and so on.
Q: How do you install and secure board-to-board connectors?
A: The installation and securing of board-to-board connectors are critical to ensuring a reliable connection and preventing intermittent electrical contacts. Here are some best practices for installing and securing board-to-board connectors:
1)Proper alignment: Ensure that the connector is aligned properly before inserting it into the board-to-board receptacle. Misalignment can cause damage to the connector, the board, or both.
2)Apply even pressure: When inserting the connector into the receptacle, apply even pressure to both sides of the connector to avoid bending or damaging the pins.
3)Use proper extraction tool: When removing the connector, use a proper extraction tool rather than pulling it out by hand. This will avoid bending or damaging the pins.
4)Secure connector: After inserting the connector, secure it to the board with appropriate mechanical fasteners such as screws, clips, or latches. This will prevent the connector from dislodging during vibration or shock.
5)Avoid over-tightening: When securing the connector to the board, avoid over-tightening as this can damage the board or the connector.
6)Follow manufacturer's instructions: Always follow the manufacturer's instructions for the installation and securing of board-to-board connectors.
By following these best practices, customers can install and secure board-to-board connectors in a manner that ensures reliable performance over the life of the product.
